Iscar ISCAR 6405211

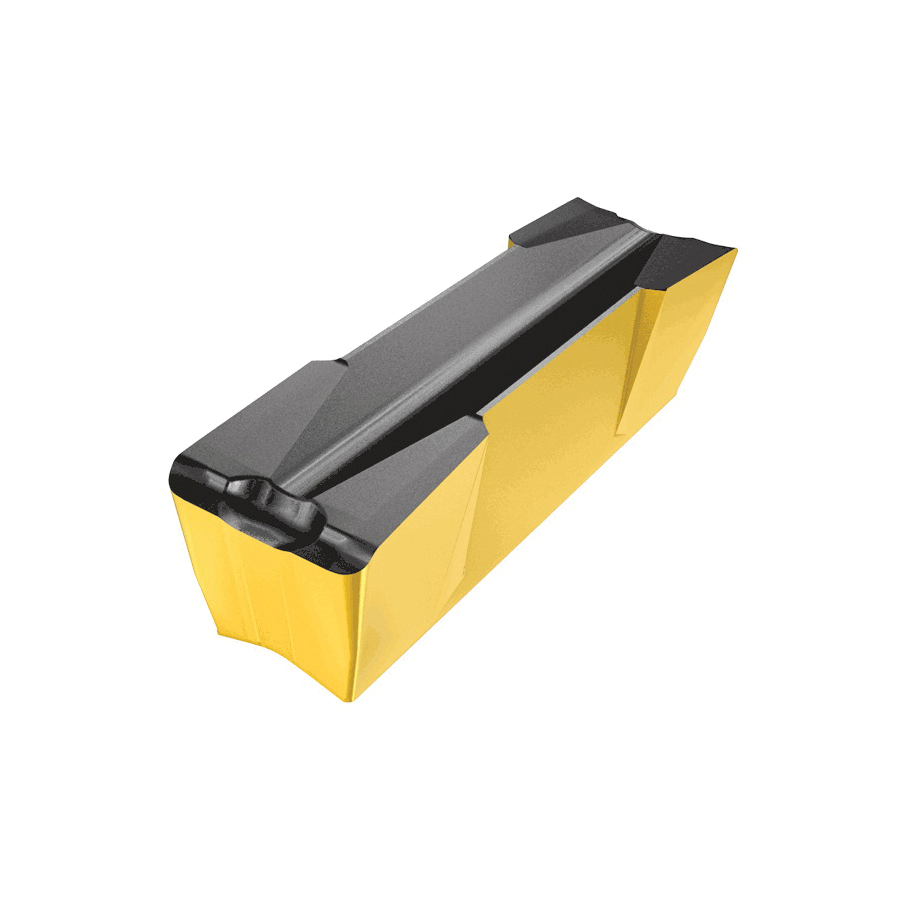

Iscar 6405211 CUT-GRIP Double End Internal Utility Grooving Insert, Rectangle Shape, GDMU Insert, 808 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gdmu 808 Ic8250
Factory Order

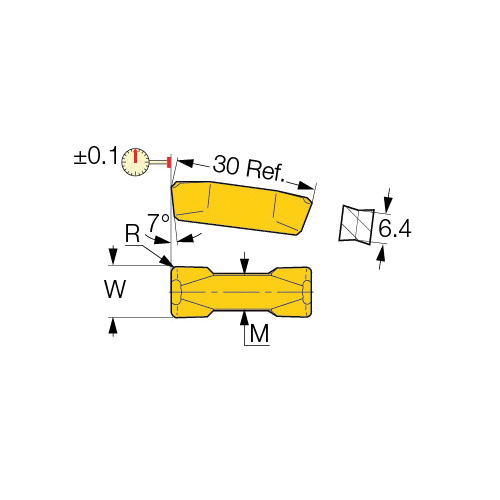

Iscar Grooving Insert, Double End Internal Utility, Series: CUT-GRIP, GDMU Insert, 808 Insert, Rectangle Shape, 8 mm Cutting Width, 0.8 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC8250, ISO Code: GDMU 808 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Used for grooving on tough and ductile materials
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size808
Insert StyleGDMU
ISO CodeGDMU 808 IC8250
Length30 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Internal Utility
Width8 mm
Additional Information
Country of OriginIL
