Iscar ISCAR 6405149

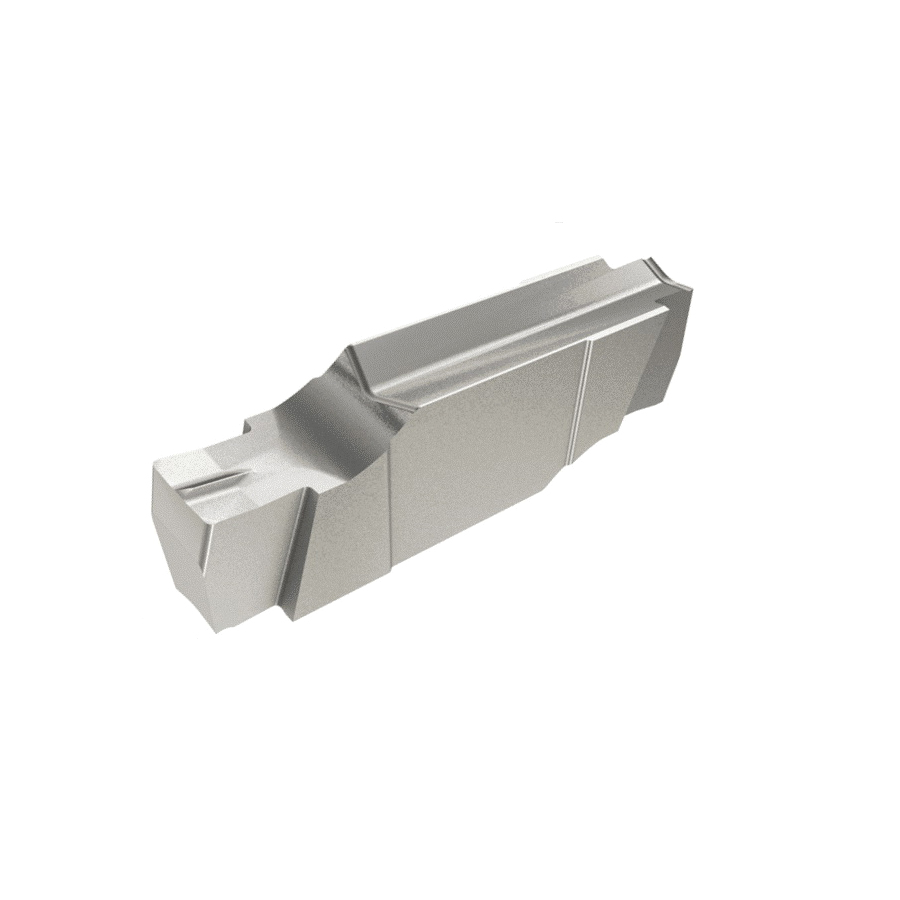

Iscar 6405149 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIPI Insert, 157015 Insert, Neutral Cutting, 1.57 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 6405149
$43.92 EA
Factory Order
Estimated to ship in 14 days
QTY:

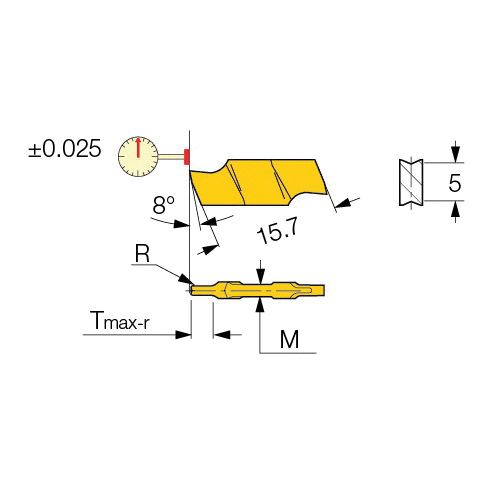

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIPI Insert, 157015 Insert, Rectangle Shape, 1.57 mm Cutting Width, 2.5 mm Maximum Depth of Cut, P Chipbreaker, 0.15 mm Corner Radius, 2.2 mm Width, 15.7 mm Length, Manufacturers Grade: IC830, ISO Code: GIPI 1.57-0.15 IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

  • Features

  • Medium feeds
  • Precision inserts for internal grooving and side turning

Specifications

ApplicationExternal/Internal Grooving, Recessing and Parting
ChipbreakerP
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width1.57 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size157015
Insert StyleGIPI
ISO CodeGIPI 1.57-0.15 IC830
Length15.7 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width2.2 mm
