Iscar ISCAR 6405144

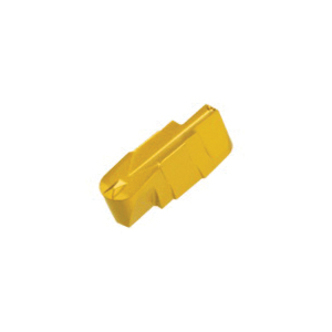

Iscar 6405144 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 300150 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 6405144
$63.68 EA
Factory Order
Estimated to ship in 14 days
QTY:

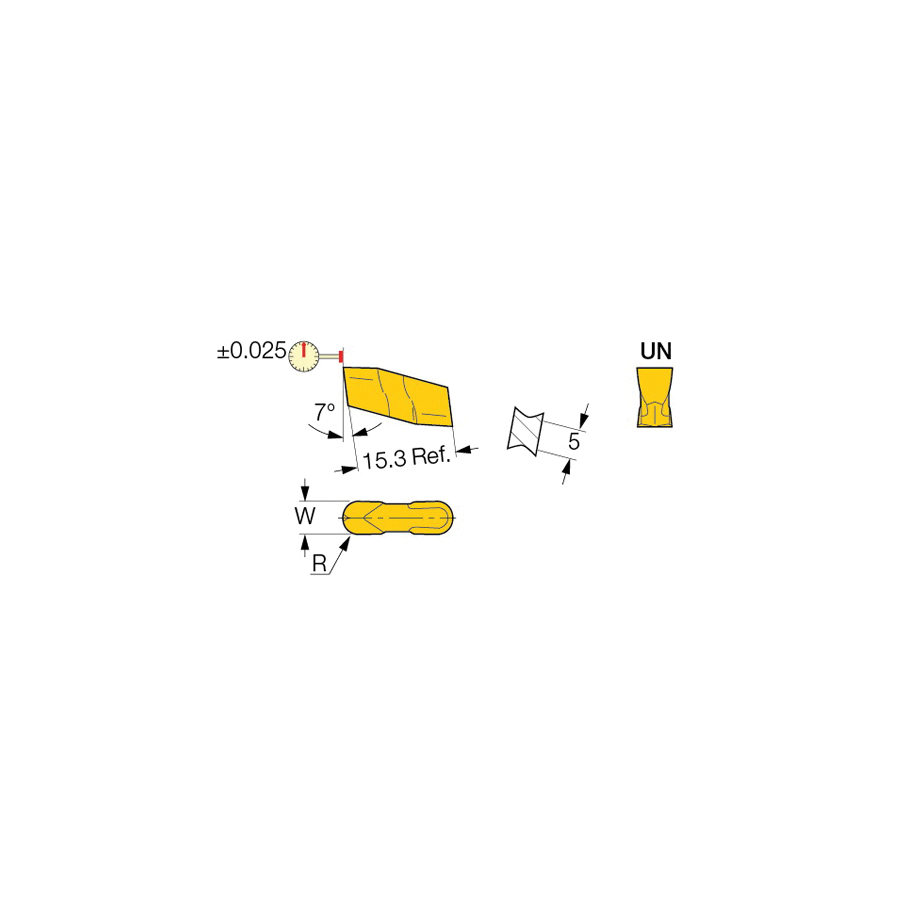

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 300150 Insert, Rectangle Shape, 3 mm Cutting Width, 4 mm Maximum Depth of Cut, UN Chipbreaker, 1.5 mm Corner Radius, 3 mm Width, 15.3 mm Length, 35 mm Diameter Hole, Manufacturers Grade: IC830, ISO Code: GIP 3.00-1.50UN IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

  • Features

  • Precision inserts for external undercutting and recessing

Specifications

ApplicationExternal Undercutting, Face Grooving and Side Turning
ChipbreakerUN
Corner Radius1.5 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Hole Diameter35 mm
Insert Size300150
Insert StyleGIP
ISO CodeGIP 3.00-1.50UN IC830
Length15.3 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3 mm
