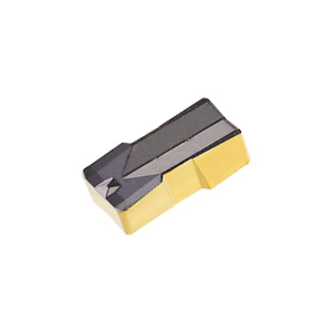

Iscar ISCAR 6405115
Iscar 6405115 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 635080 Insert, Neutral Cutting, 6.35 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gip 6.35e-0.80 Ic808
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 635080 Insert, Rectangle Shape, 6.35 mm Cutting Width, 3.8 mm Maximum Depth of Cut, E Chipbreaker, 0.8 mm Corner Radius, 6.35 mm Width, 15.3 mm Length, Manufacturers Grade: IC808, ISO Code: GIP 6.35E-0.80 IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Features
- Medium to high feeds
Specifications
ApplicationExternal Grooving, Parting and Turning
ChipbreakerE
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width6.35 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size635080
Insert StyleGIP
ISO CodeGIP 6.35E-0.80 IC808
Length15.3 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width6.35 mm
Additional Information
Country of OriginIL
