Iscar ISCAR 6405094

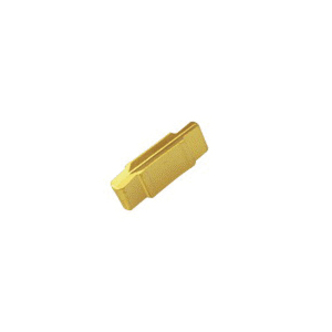

Iscar 6405094 CUT-GRIP Double End Full Radius Grooving Insert, Rectangle Shape, GIP Insert, 157079 Insert, Neutral Cutting, 1.57 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Invoice description:
Gip 1.57-0.79 Ic830
Factory Order
Iscar Grooving Insert, Double End Full Radius, Series: CUT-GRIP, GIP Insert, 157079 Insert, Rectangle Shape, 1.57 mm Cutting Width, 2.7 mm Maximum Depth of Cut, 0.79 mm Corner Radius, 1.57 mm Width, 15.3 mm Length, Manufacturers Grade: IC830, ISO Code: GIP 1.57-0.79 IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Features
- Flat top precision double ended inserts with full radius for grooving
Specifications
ApplicationExternal Grooving, Groove Turning and Internal Grooving
Corner Radius0.79 mm
Cutting DirectionNeutral
Cutting Width1.57 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size157079
Insert StyleGIP
ISO CodeGIP 1.57-0.79 IC830
Length15.3 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.7 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius
Width1.57 mm
Additional Information
Country of OriginIS
