Iscar ISCAR 6405073

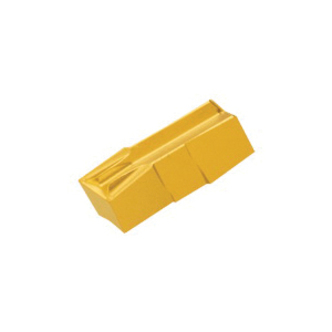

Iscar 6405073 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIF Insert, 400040 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Invoice description:
Gif 4.00e-0.40 Ic830
Factory Order

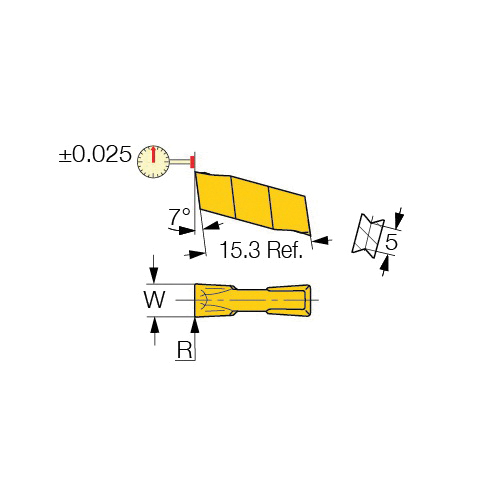

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIF Insert, 400040 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, E Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC830, ISO Code: GIF 4.00E-0.40 IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Features
- Medium to high feeds
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size400040
Insert StyleGIF
ISO CodeGIF 4.00E-0.40 IC830
Length15.3 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width4 mm
Additional Information
Country of OriginIL
