Iscar ISCAR 6405064

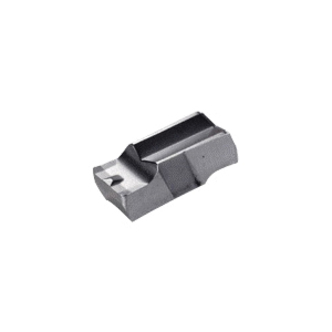

Iscar 6405064 CUT-GRIP Double End Grooving Insert, GPI Insert, 300040 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Invoice description:
Gipi 3.00e-0.40 Ic830
Factory Order

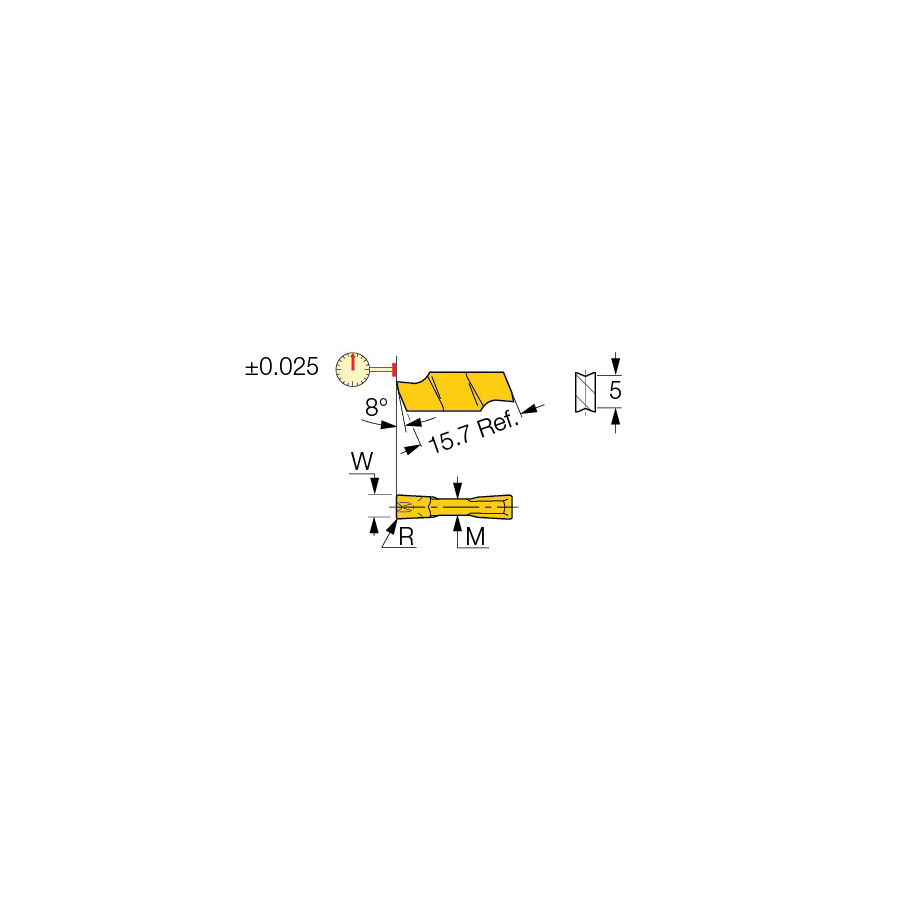

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GPI Insert, 300040 Insert, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0 deg Lead Angle, E Chipbreaker, 0.4 mm Corner Radius, 3 mm Width, 15.7 mm Length, Manufacturers Grade: IC830, ISO Code: GPI 3.00E-0.40 IC830, Neutral Cutting, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Features
- Precision inserts for internal turning and grooving
- High toughness and wear resistance
- P type chipbreaker - very open geometry
- Medium to high feed in turning and grooving
- Large variety of standard sizes
- Precision ground inserts only
- External coolant
Specifications
ApplicationInternal Grooving, Internal Grooving and Turning, Internal Groove Milling, Side Slotting, Threading and T-Slotting
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size300040
Insert StyleGPI
ISO CodeGPI 3.00E-0.40 IC830
Lead Angle0 deg
Length15.7 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1.5 mm
SeriesCUT-GRIP
TypeDouble End
Width3 mm
Additional Information
Country of OriginIS
