Iscar ISCAR 6405038

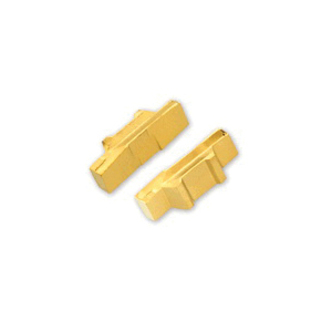

Iscar 6405038 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 157015 Insert, Right Hand Cutting, 1.57 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Invoice description:
Gip 1.57-0.15 Rx Ic830
Factory Order

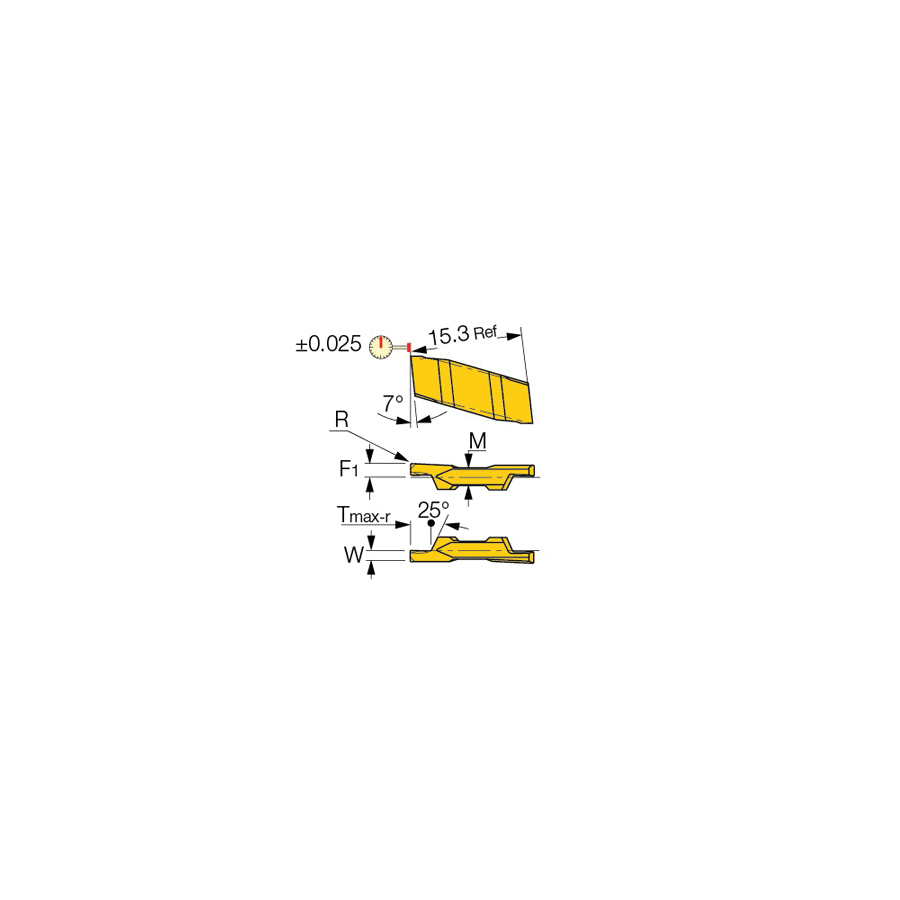

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 157015 Insert, Rectangle Shape, 1.57 mm Cutting Width, 2.7 mm Maximum Depth of Cut, RX Chipbreaker, 0.15 mm Corner Radius, 1.57 mm Width, 15.3 mm Length, Manufacturers Grade: IC830, ISO Code: GIP 1.57-0.15RX IC830, Right Hand Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Features
- Precision ground, double ended inserts for external grooving next to a shoulder
Specifications
ApplicationGroove Turning Applications
ChipbreakerRX
Corner Radius0.15 mm
Cutting DirectionRight Hand
Cutting Width1.57 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size157015
Insert StyleGIP
ISO CodeGIP 1.57-0.15RX IC830
Length15.3 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.7 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width1.57 mm
Additional Information
Country of OriginIS
