Iscar ISCAR 6405011

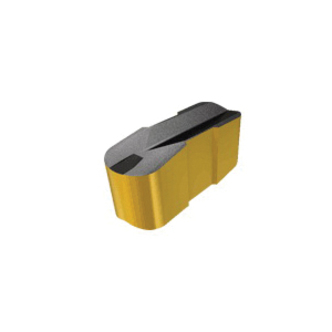

Iscar 6405011 CUT-GRIP Double End Full Radius Grooving Insert, Rectangle Shape, GIP-E Insert, 300150 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Invoice description:
Gip 3.00e-1.50 Ic830
Factory Order

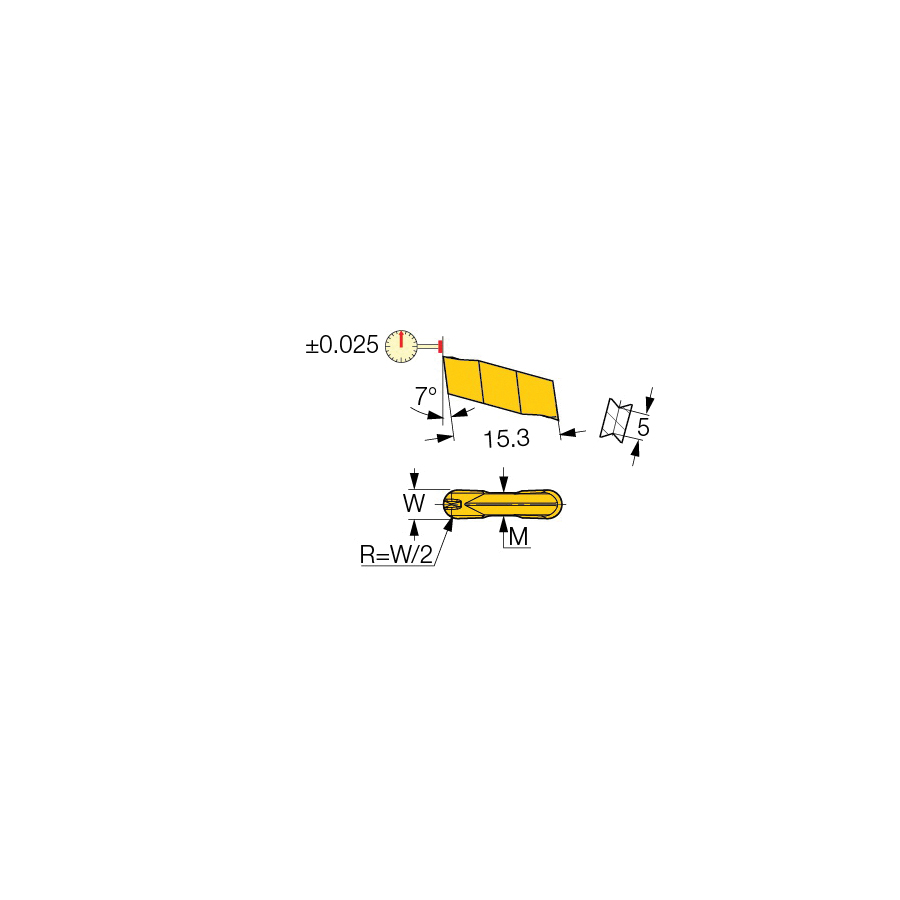

Iscar Grooving Insert, Double End Full Radius, Series: CUT-GRIP, GIP-E Insert, 300150 Insert, Rectangle Shape, 3 mm Cutting Width, 1 mm Maximum Depth of Cut, E Chipbreaker, 1.5 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC830, ISO Code: GIP 300E1.50 IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S
Features
- Precision full radius inserts for profiling and grooving
Specifications
ApplicationExternal Grooving, External Profiling, Groove Turning, Internal Profiling, Internal Grooving and Side Slotting
ChipbreakerE
Corner Radius1.5 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size300150
Insert StyleGIP-E
ISO CodeGIP 300E1.50 IC830
Length15.3 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Full Radius
Width3 mm
Additional Information
Country of OriginIS
