Iscar ISCAR 6405003

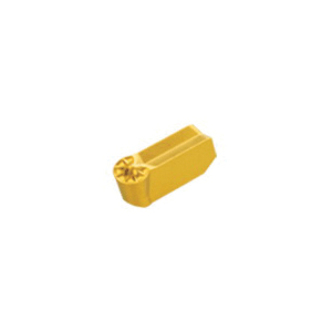

Iscar 6405003 CUT-GRIP Single End Utility Full Radius Grooving Insert, Rectangle Shape, GIMY Insert, 315 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

Invoice description: Gimy 315 Ic830

UNSPSC: 23242107
Manufacturer PN: 6405003
$21.70 EA
Factory Order
Estimated to ship in 14 days
QTY:

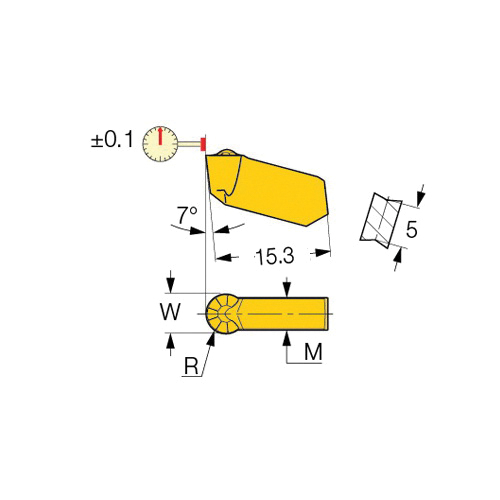

Iscar Grooving Insert, Single End Utility Full Radius, Series: CUT-GRIP, GIMY Insert, 315 Insert, Rectangle Shape, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, F/Y Chipbreaker, 1.5 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC830, ISO Code: GIMY 315 IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

  • Features

  • Medium feeds

Specifications

ApplicationDeep Grooving, Profiling and Turning
ChipbreakerF/Y
Corner Radius1.5 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size315
Insert StyleGIMY
ISO CodeGIMY 315 IC830
Length15.3 mm
Manufacturers GradeIC830
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End Utility Full Radius
Width3 mm

Additional Information

Country of OriginIL
