Iscar ISCAR 6404367

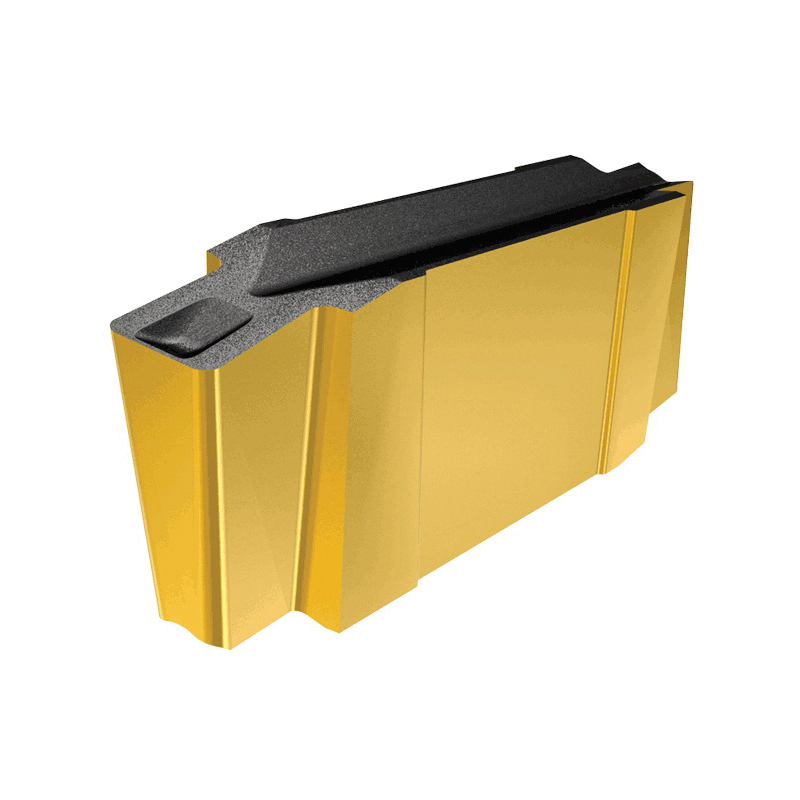

Iscar 6404367 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIG Insert, 200020 Insert, Neutral Cutting, 2 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6404367
$43.92 EA
Factory Order
Estimated to ship in 14 days
QTY:

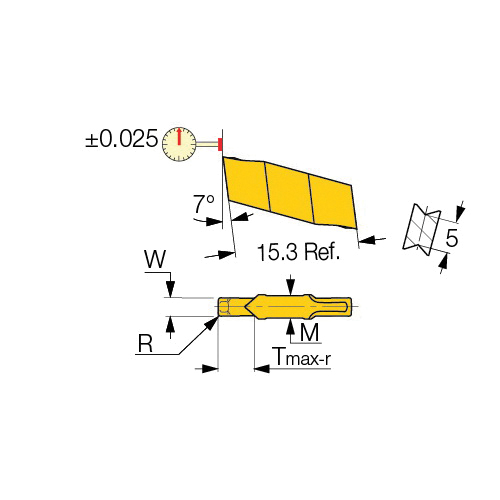

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIG Insert, 200020 Insert, Rectangle Shape, 2 mm Cutting Width, 3 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 2.2 mm Width, 15.3 mm Length, Manufacturers Grade: IC808, ISO Code: GIG 2.00-0.20 IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Grooving and Parting
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width2 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size200020
Insert StyleGIG
ISO CodeGIG 2.00-0.20 IC808
Length15.3 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width2.2 mm
