Iscar ISCAR 6404331

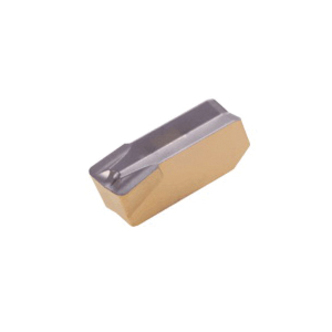

Iscar 6404331 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMF Insert, 508 Insert, Neutral Cutting, 5 mm W Cutting, Manufacturers Grade: IC830, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

Invoice description: Gimf 508 Ic830

UNSPSC: 23242107

Manufacturer PN: 6404331

^$23.78 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

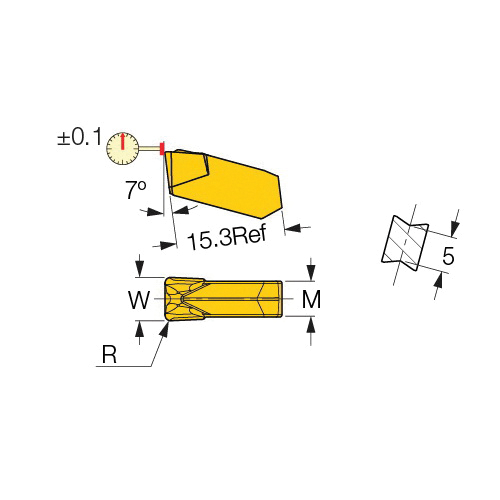

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMF Insert, 508 Insert, Rectangle Shape, 5 mm Cutting Width, 3 mm Maximum Depth of Cut, F/Y Chipbreaker, 0.8 mm Corner Radius, 5 mm Width, 15.3 mm Length, Manufacturers Grade: IC830, ISO Code: GIMF 508 IC830, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: M, P, S

Features
Used for deep machining at low to medium feed

Specifications

ApplicationExternal Grooving, External Grooving and Turning, Face Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Grooving and Internal Grooving and Turning

ChipbreakerF/Y

Corner Radius0.8 mm

Cutting DirectionNeutral

Cutting Width5 mm

FinishPVD-TiAlN/AlTiN+TiN Coated

Insert Size508

Insert StyleGIMF

ISO CodeGIMF 508 IC830

Length15.3 mm

Manufacturers GradeIC830

MaterialCarbide

Material GradeM, P, S
