Iscar ISCAR 6404313

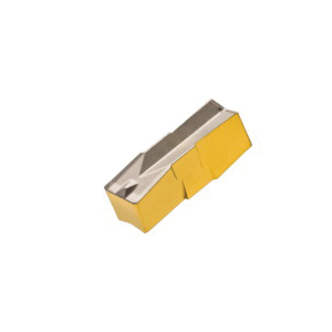

Iscar 6404313 CUT-GRIP Double End Precision Grooving Insert, GIP Insert, 300020 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gip 3.00e-0.20 Ic8250
Factory Order
Iscar Grooving Insert, Double End Precision, Series: CUT-GRIP, GIP Insert, 300020 Insert, 3 mm Cutting Width, 1.8 mm Maximum Depth of Cut, E Chipbreaker, 0.2 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIP 3.00E-0.20 IC8250, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- External insert with double edge for channel and face
- Medium and high machining chipper
Specifications
ApplicationTurning and Grooving
ChipbreakerE
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size300020
Insert StyleGIP
ISO CodeGIP 3.00E-0.20 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut1.8 mm
SeriesCUT-GRIP
TypeDouble End Precision
Width3 mm
Additional Information
Country of OriginIL
