Iscar ISCAR 6404311

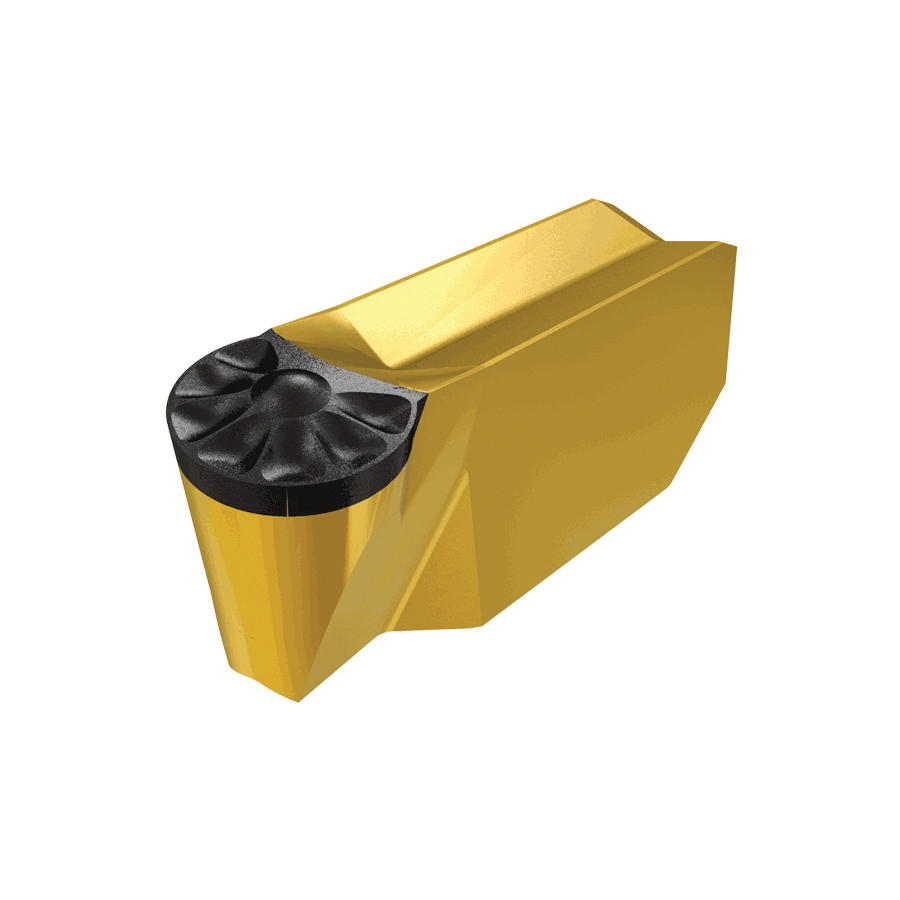

Iscar 6404311 CUT-GRIP External Single End Utility Grooving Insert, Rectangle Shape, GIMY Insert, 315 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

UNSPSC: 23242107
Manufacturer PN: 6404311
$27.54 EA
Factory Order
Estimated to ship in 14 days
QTY:

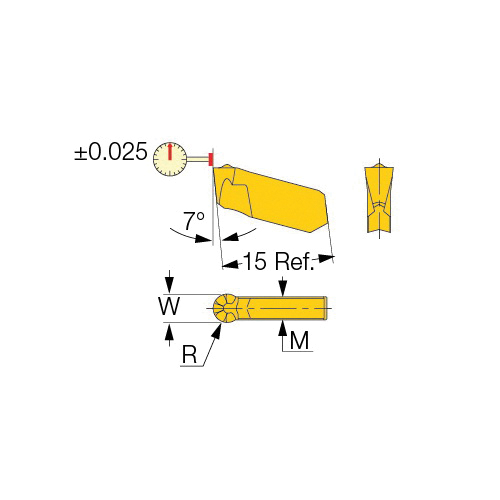

Iscar Grooving Insert, External Single End Utility, Series: CUT-GRIP, GIMY Insert, 315 Insert, Rectangle Shape, 3 mm Cutting Width, 2 mm Maximum Depth of Cut, UN Chipbreaker, 1.5 mm Corner Radius, 3 mm Width, 15 mm Length, Manufacturers Grade: IC8250, ISO Code: GIMY 315-UN IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

  • Features

  • Low to medium feeds

Specifications

ApplicationExternal Grooving, Deep Machining, Undercutting and Parting
ChipbreakerUN
Corner Radius1.5 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size315
Insert StyleGIMY
ISO CodeGIMY 315-UN IC8250
Length15 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut2 mm
SeriesCUT-GRIP
ShapeRectangle
TypeExternal Single End Utility
Width3 mm
