Iscar ISCAR 6404276

Iscar 6404276 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMY Insert, 315 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

Invoice description: Gimy 315 Ic8250

UNSPSC: 23242107

Manufacturer PN: 6404276

^$23.78 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

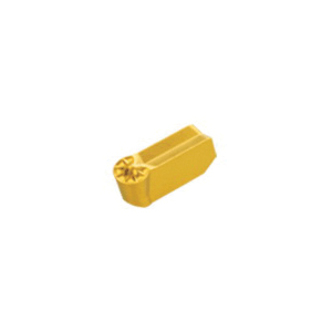

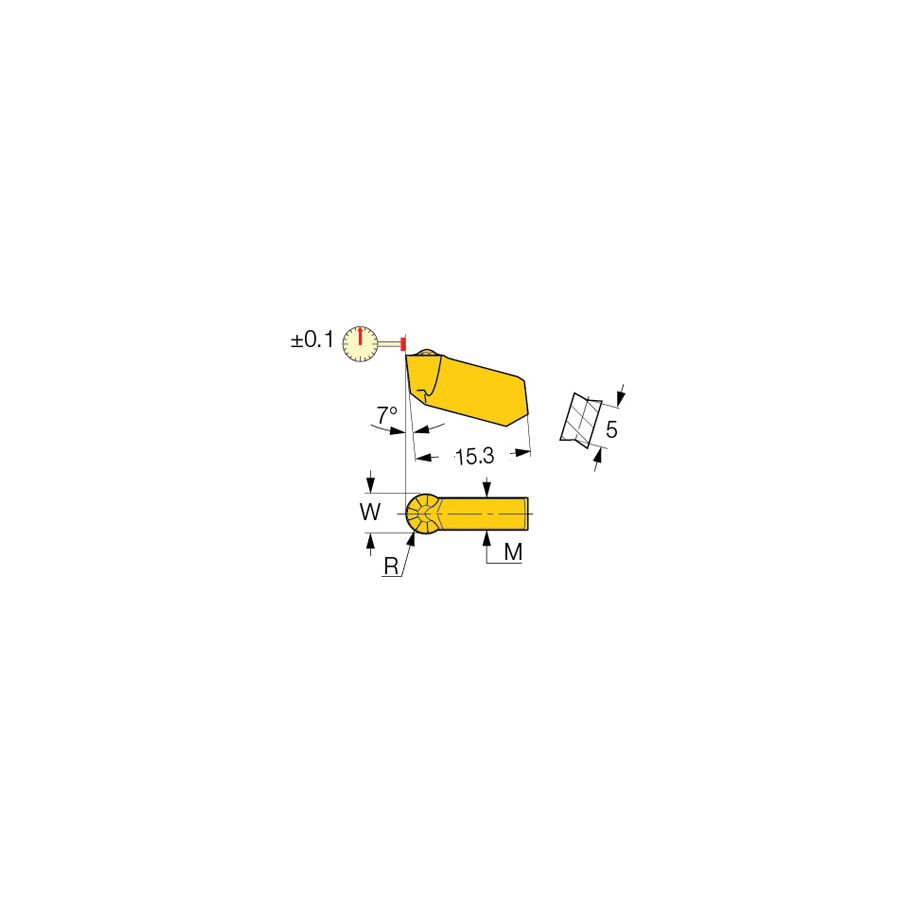

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMY Insert, 315 Insert, Rectangle Shape, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, Y Chipbreaker, 1.5 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIMY 315 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P

Features
Utility single ended inserts with F/Y-type chip formers, used for deep grooving and turning at low to medium feeds
The full radius inserts can cut arcs to 250 deg

Specifications

ApplicationExternal Grooving, External Grooving and Turning, Face Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Grooving and Internal Grooving and Turning

ChipbreakerY

Corner Radius1.5 mm

Cutting DirectionNeutral

Cutting Width3 mm

FinishCVD-TiCN+Al2O3+TiN Coated

Insert Size315

Insert StyleGIMY

ISO CodeGIMY 315 IC8250

Length15.3 mm

Manufacturers GradeIC8250

MaterialCarbide

Material GradeM, P
