Iscar ISCAR 6404274

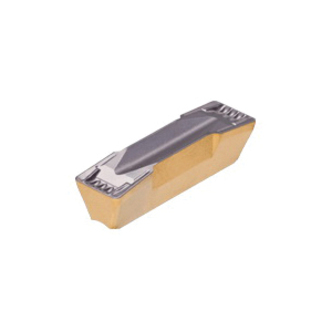

Iscar 6404274 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GDMY Insert, 808 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gdmy 808 Ic8250
Factory Order

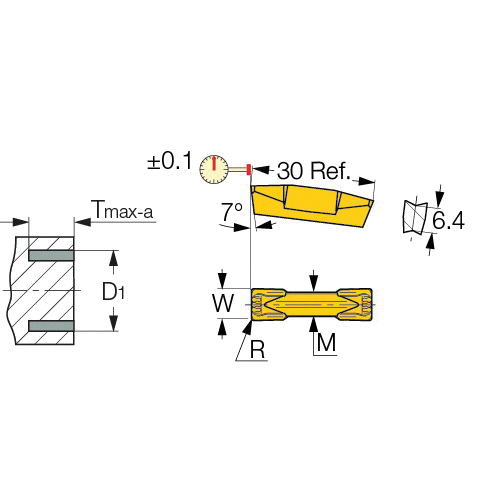

Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GDMY Insert, 808 Insert, Rectangle Shape, 8 mm Cutting Width, 4.8 mm Maximum Depth of Cut, 0.8 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC8250, ISO Code: GDMY 808 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Medium to high feeds
Specifications
ApplicationExternal Grooving, Parting, Heavy Duty Turning, Profiling and Grooving
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size808
Insert StyleGDMY
ISO CodeGDMY 808 IC8250
Length30 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width8 mm
Additional Information
Country of OriginIL
