Iscar ISCAR 6404238

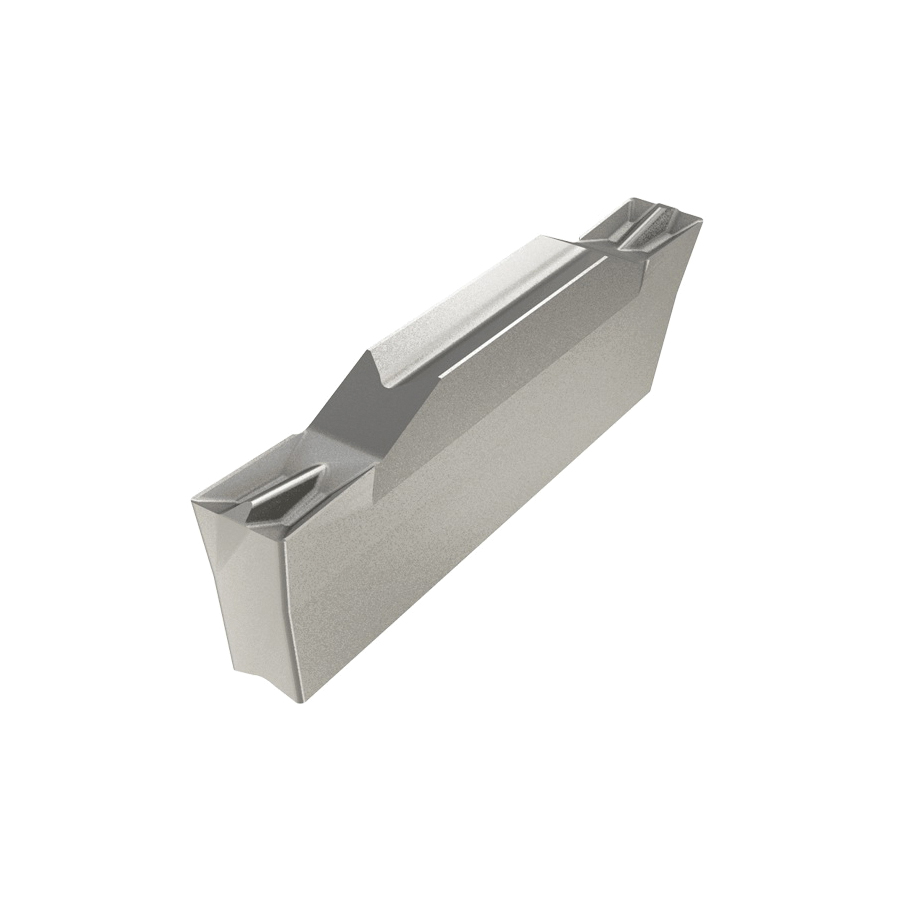

Iscar 6404238 CUT-GRIP Double End Utility Grooving Insert, Rectangle Shape, GDMW Insert, 24 Insert, Neutral Cutting, 2.4 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gdmw 2.4 Ic808
Factory Order
Iscar Grooving Insert, Double End Utility, Series: CUT-GRIP, GDMW Insert, 24 Insert, Rectangle Shape, 2.4 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0.18 mm Corner Radius, 2.4 mm Width, 20 mm Length, Manufacturers Grade: IC808, ISO Code: GDMW 2.4 IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Features
- Low to medium feeds
- For grooving, reduce cutting speed by 30 and feed by 50%
Specifications
ApplicationExternal Grooving, Turning and Parting
Corner Radius0.18 mm
Cutting DirectionNeutral
Cutting Width2.4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size24
Insert StyleGDMW
ISO CodeGDMW 2.4 IC808
Length20 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Utility
Width2.4 mm
Additional Information
Country of OriginIL
