Iscar ISCAR 6404231

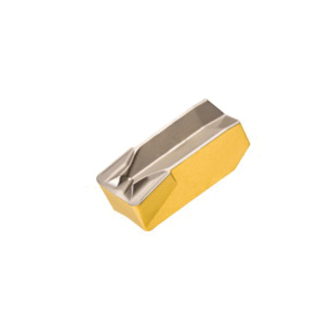

Iscar 6404231 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMF Insert, 808 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC8250, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Invoice description:
Gimf 808 Ic8250
Factory Order

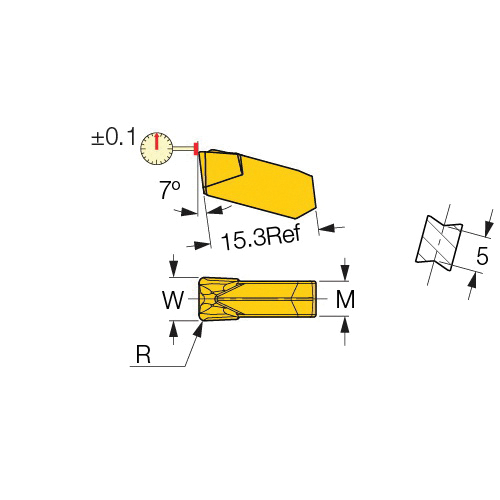

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMF Insert, 808 Insert, Rectangle Shape, 8 mm Cutting Width, 4.8 mm Maximum Depth of Cut, F/Y Chipbreaker, 0.8 mm Corner Radius, 8 mm Width, 15.3 mm Length, Manufacturers Grade: IC8250, ISO Code: GIMF 808 IC8250, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: M, P
Features
- Used for deep machining at low to medium feed
Specifications
ApplicationExternal/Internal Grooving and Parting
ChipbreakerF/Y
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size808
Insert StyleGIMF
ISO CodeGIMF 808 IC8250
Length15.3 mm
Manufacturers GradeIC8250
MaterialCarbide
Material GradeM, P
Maximum Depth of Cut4.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End Utility
Width8 mm
Additional Information
Country of OriginIL
