Iscar ISCAR 6404118

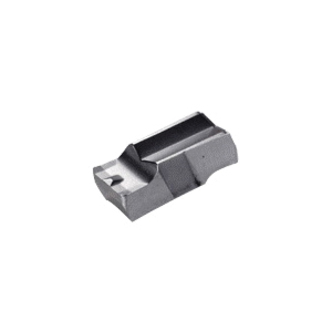

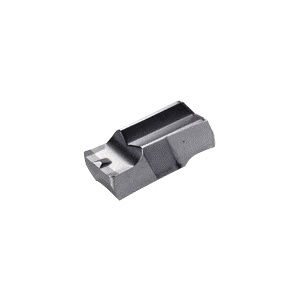

Iscar 6404118 CUT-GRIP Double End Grooving Insert, GIPI Insert, 400040 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gipi 4.00e-0.40 Ic808
Factory Order

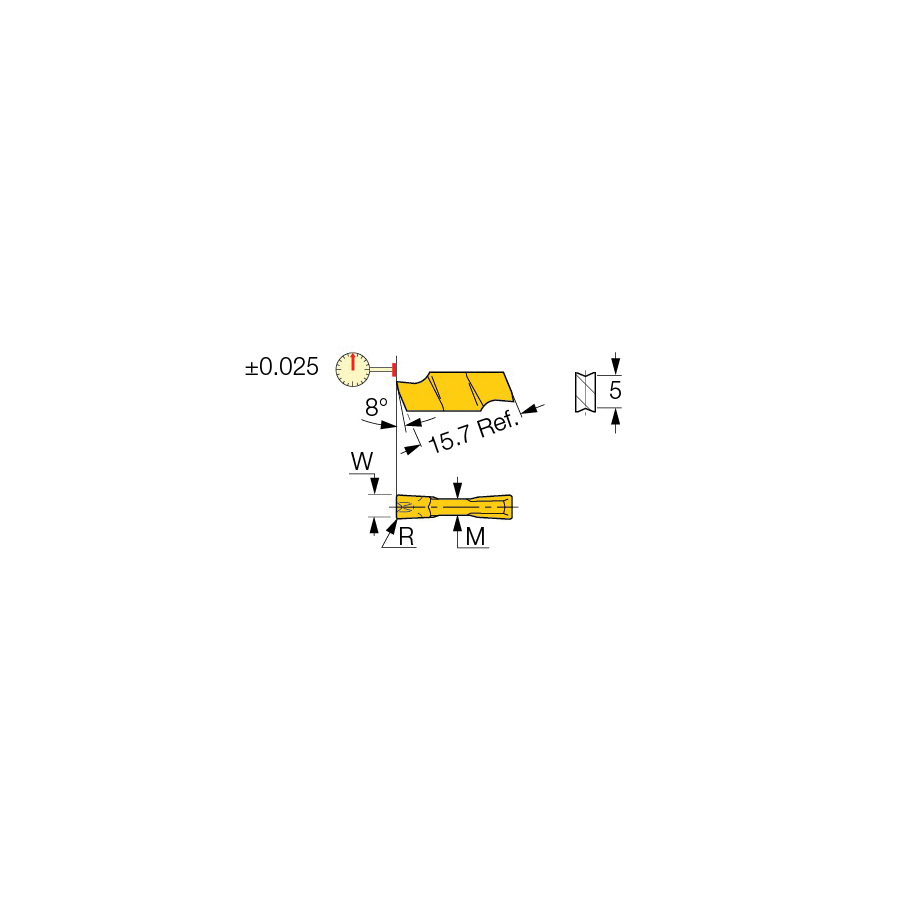

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIPI Insert, 400040 Insert, 4 mm Cutting Width, 2 mm Maximum Depth of Cut, 0 deg Lead Angle, E Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 15.7 mm Length, Manufacturers Grade: IC808, ISO Code: GIPI 4.00E-0.40 IC808, Neutral Cutting, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Features
- Precision inserts for internal turning and grooving
Specifications
ApplicationTurning and Grooving
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size400040
Insert StyleGIPI
ISO CodeGIPI 4.00E-0.40 IC808
Lead Angle0 deg
Length15.7 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2 mm
SeriesCUT-GRIP
TypeDouble End
Width4 mm
Additional Information
Country of OriginIL
