Iscar 6404104 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMF Insert, 406 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

Invoice description: Gimf 406 Ic808

UNSPSC: 23242107

Manufacturer PN: 6404104

^$21.26 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

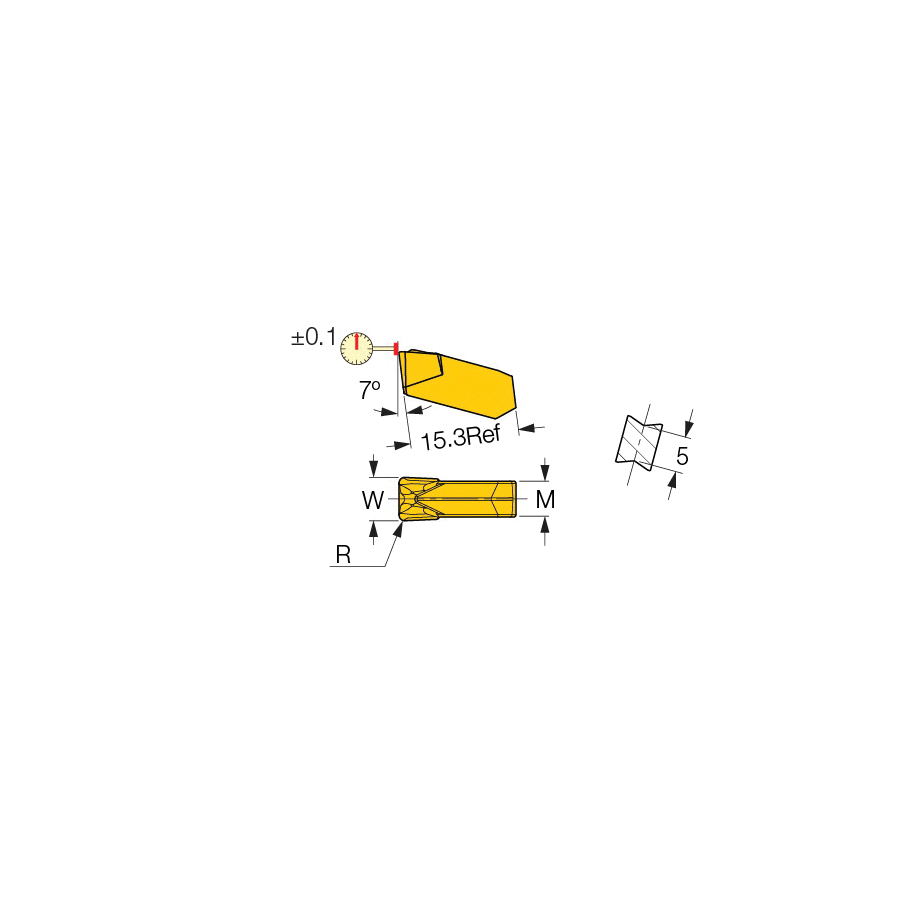

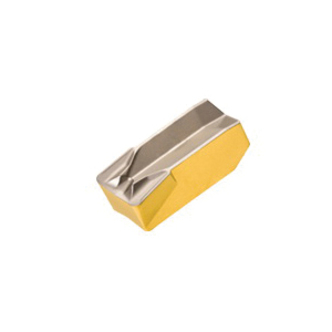

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMF Insert, 406 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, E Chipbreaker, 0.6 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC808, ISO Code: GIMF 406 IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S

Features
Used for deep machining at low to medium feed

Specifications

ApplicationExternal Grooving, External Grooving and Turning, Face Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Grooving and Internal Grooving and Turning

ChipbreakerE

Corner Radius0.6 mm

Cutting DirectionNeutral

Cutting Width4 mm

FinishPVD-TiAlN/AlTiN+TiN Coated

Insert Size406

Insert StyleGIMF

ISO CodeGIMF 406 IC808

Length15.3 mm

Manufacturers GradeIC808

MaterialCarbide

Material GradeH, K, M, P, S
