Iscar ISCAR 6404084

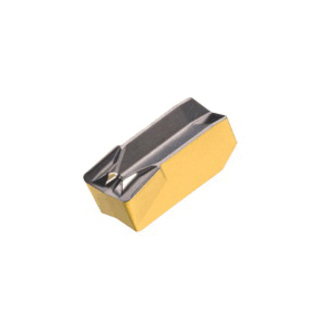

Iscar 6404084 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMF Insert, 608 Insert, Neutral Cutting, 6 mm W Cutting, Manufacturers Grade: IC808, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gimf 608 Ic808
Factory Order

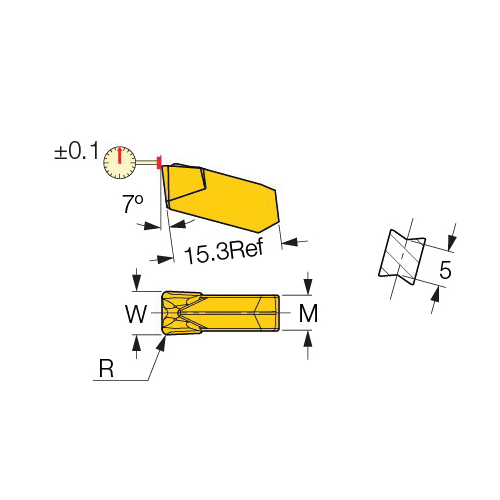

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMF Insert, 608 Insert, Rectangle Shape, 6 mm Cutting Width, 3.6 mm Maximum Depth of Cut, F/Y Chipbreaker, 0.8 mm Corner Radius, 6 mm Width, 15.3 mm Length, Manufacturers Grade: IC808, ISO Code: GIMF 608 IC808, Neutral Cutting Direction, Carbide, PVD-TiAlN/AlTiN+TiN Coated, Material Grade: H, K, M, P, S
Features
- Used for deep machining at low to medium feed
Specifications
ApplicationExternal/Internal Grooving and Parting
ChipbreakerF/Y
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width6 mm
FinishPVD-TiAlN/AlTiN+TiN Coated
Insert Size608
Insert StyleGIMF
ISO CodeGIMF 608 IC808
Length15.3 mm
Manufacturers GradeIC808
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut3.6 mm
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End Utility
Width6 mm
Additional Information
Country of OriginIL
