Iscar ISCAR 6404047

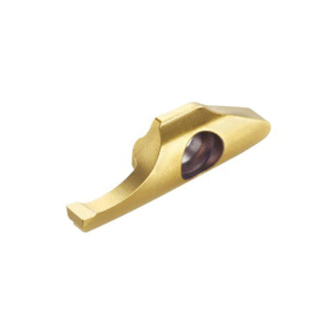

Iscar 6404047 MINCUT Single End Screw Clamped Grooving Insert, MIFR Insert, 1025020 Insert, Neutral Cutting, 2.5 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6404047
$54.72 EA
Factory Order
Estimated to ship in 14 days
QTY:

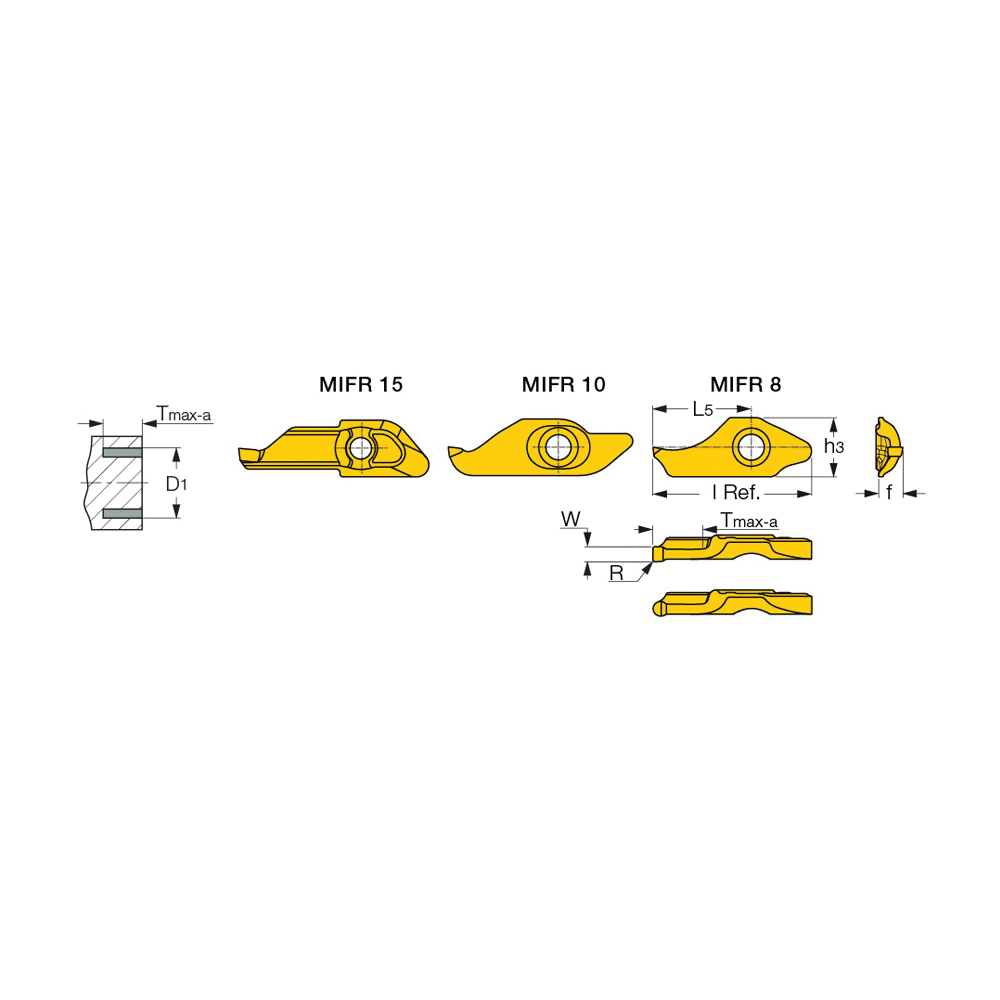

Iscar Grooving Insert, Single End Screw Clamped, Series: MINCUT, MIFR Insert, 1025020 Insert, 2.5 mm Cutting Width, 9 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 2.5 mm Width, 14.8 mm Length, Manufacturers Grade: IC908, ISO Code: MIFR 1025020 IC908, Neutral Cutting, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationFace Grooving, Face Grooving & Turning, Groove Turning, Internal Face Grooving and Internal Face Recessing
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width2.5 mm
FinishPVD-TiAlN Coated
Insert Size1025020
Insert StyleMIFR
ISO CodeMIFR 1025020 IC908
Length14.8 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut9 mm
SeriesMINCUT
TypeSingle End Screw Clamped
Width2.5 mm
