Iscar ISCAR 6403948

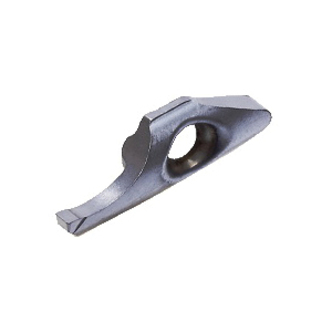

Iscar 6403948 MINCUT Screw Clamped Grooving Insert, Special Shape, MIFR Insert, 8150020 Insert, Neutral Cutting, 1.5 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403948
$47.86 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Screw Clamped, Series: MINCUT, MIFR Insert, 8150020 Insert, Special Shape, 1.5 mm Cutting Width, 5.69 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 1.5 mm Width, 17.7 mm Length, Manufacturers Grade: IC908, ISO Code: MIFR 8-1.50-0.20 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Grooving and Parting
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width1.5 mm
FinishPVD-TiAlN Coated
Insert Size8150020
Insert StyleMIFR
ISO CodeMIFR 8-1.50-0.20 IC908
Length17.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut5.69 mm
SeriesMINCUT
ShapeSpecial
TypeScrew Clamped
Width1.5 mm
