Iscar ISCAR 6403512

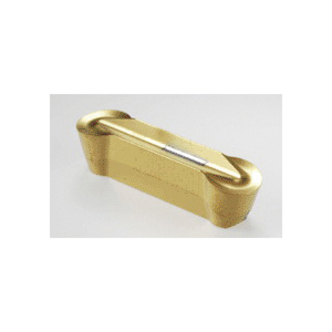

Iscar 6403512 CUT-GRIP Double End External Utility Grooving Insert, Rectangle Shape, GDMA Insert, 840 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC507, PVD-TiCN+TiN Coated, Material Grade: H, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403512
$52.10 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End External Utility, Series: CUT-GRIP, GDMA Insert, 840 Insert, Rectangle Shape, 8 mm Cutting Width, 4 mm Maximum Depth of Cut, 4 mm Corner Radius, 8 mm Width, 30 mm Length, Manufacturers Grade: IC507, ISO Code: GDMA 840 IC507, Neutral Cutting Direction, Carbide, PVD-TiCN+TiN Coated, Material Grade: H, M, P, S

  • Features

  • Standard double sided polished plates for machining aluminum wheels at medium to high speeds

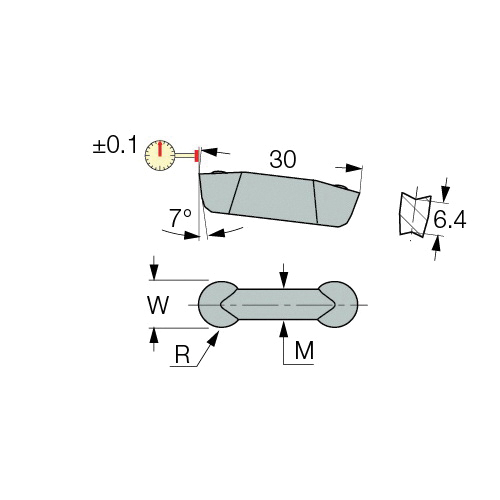

Specifications

ApplicationExternal Grooving and Parting
Corner Radius4 mm
Cutting DirectionNeutral
Cutting Width8 mm
FinishPVD-TiCN+TiN Coated
Insert Size840
Insert StyleGDMA
ISO CodeGDMA 840 IC507
Length30 mm
Manufacturers GradeIC507
MaterialCarbide
Material GradeH, M, P, S
Maximum Depth of Cut4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End External Utility
Width8 mm
