Iscar ISCAR 6403384

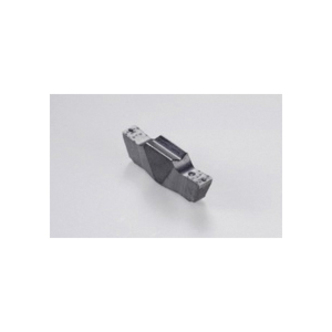

Iscar 6403384 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GEPI Insert, 157015 Insert, Neutral Cutting, 1.57 mm W Cutting, Manufacturers Grade: IC08, Uncoated, Material Grade: N
Invoice description:
Gepi 1.57-0.15 Ic08
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GEPI Insert, 157015 Insert, Rectangle Shape, 1.57 mm Cutting Width, 0.079 mm Maximum Depth of Cut, 0.15 mm Corner Radius, 1.8 mm Width, 10 mm Length, Manufacturers Grade: IC08, ISO Code: GEPI 1.57-0.15 IC08, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: N
Features
- Used for internal grooving at low feeds in diameters from 11.5 mm
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width1.57 mm
FinishUncoated
Insert Size157015
Insert StyleGEPI
ISO CodeGEPI 1.57-0.15 IC08
Length10 mm
Manufacturers GradeIC08
MaterialCarbide
Material GradeN
Maximum Depth of Cut0.079 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width1.8 mm
Additional Information
Country of OriginIL
