Iscar ISCAR 6403372

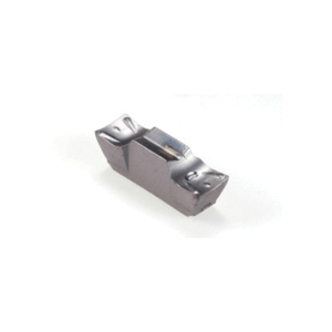

Iscar 6403372 CUT-GRIP Double Sided Utility Grooving Insert, Rectangle Shape, GEMI Insert, 3002 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Factory Order

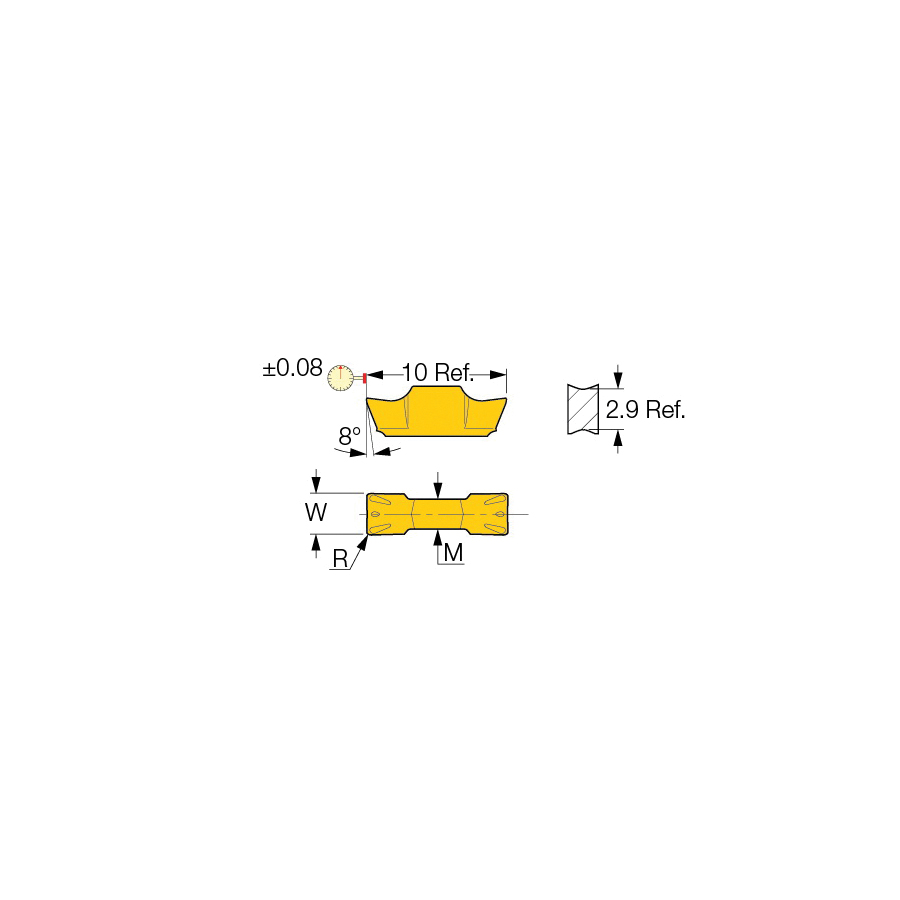

Iscar Grooving Insert, Double Sided Utility, Series: CUT-GRIP, GEMI Insert, 3002 Insert, Rectangle Shape, 3 mm Cutting Width, 1.3 mm Maximum Depth of Cut, M Chipbreaker, 0.2 mm Corner Radius, 3 mm Width, 10 mm Length, Manufacturers Grade: IC908, ISO Code: GEMI 3002M IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- For internal grooving at low feeds in diameters from 11.5 mm
Specifications
ApplicationExternal Grooving, External Grooving and Turning, Groove Turning, Internal Grooving and Internal Grooving and Turning
ChipbreakerM
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishPVD-TiAlN Coated
Insert Size3002
Insert StyleGEMI
ISO CodeGEMI 3002M IC908
Length10 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1.3 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble Sided Utility
Width3 mm
