Iscar ISCAR 6403355

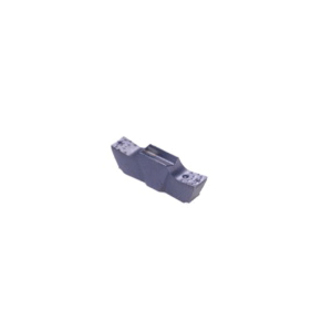

Iscar 6403355 CUT-GRIP Double End Internal Precision Ground Utility Grooving Insert, Rectangle Shape, GEPI Insert, 196015 Insert, Neutral Cutting, 1.96 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gepi 1.96-0.15 Ic908
Factory Order

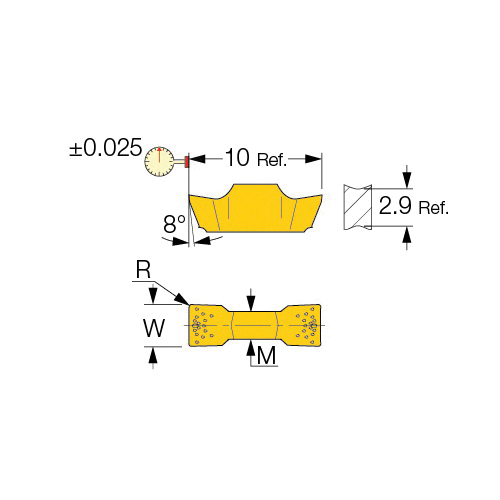

Iscar Grooving Insert, Double End Internal Precision Ground Utility, Series: CUT-GRIP, GEPI Insert, 196015 Insert, Rectangle Shape, 1.96 mm Cutting Width, 0.5 mm Maximum Depth of Cut, 0.15 mm Corner Radius, 1.96 mm Width, 10 mm Length, Manufacturers Grade: IC908, ISO Code: GEPI 1.96-0.15 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width1.96 mm
FinishPVD-TiAlN Coated
Insert Size196015
Insert StyleGEPI
ISO CodeGEPI 1.96-0.15 IC908
Length10 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut0.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Internal Precision Ground Utility
Width1.96 mm
Additional Information
Country of OriginIL
