Iscar ISCAR 6403354

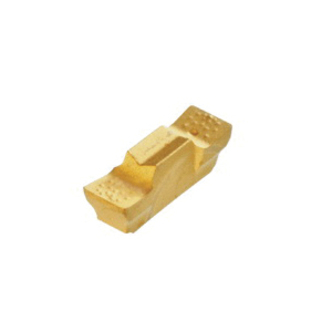

Iscar 6403354 CUT-GRIP Double End Internal Precision Ground Utility Grooving Insert, Rectangle Shape, GEPI Insert, 196015 Insert, Neutral Cutting, 1.96 mm W Cutting, Manufacturers Grade: IC528, PVD- TiCN+TiN Coated, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403354
$42.30 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End Internal Precision Ground Utility, Series: CUT-GRIP, GEPI Insert, 196015 Insert, Rectangle Shape, 1.96 mm Cutting Width, 0.5 mm Maximum Depth of Cut, 0.15 mm Corner Radius, 1.96 mm Width, 10 mm Length, Manufacturers Grade: IC528, ISO Code: GEPI 1.96-0.15 IC528, Neutral Cutting Direction, Carbide, PVD- TiCN+TiN Coated, Material Grade: M, P, S

Specifications

ApplicationGroove Turning and Internal Grooving
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width1.96 mm
FinishPVD- TiCN+TiN Coated
Insert Size196015
Insert StyleGEPI
ISO CodeGEPI 1.96-0.15 IC528
Length10 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut0.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Internal Precision Ground Utility
Width1.96 mm
