Iscar ISCAR 6403274

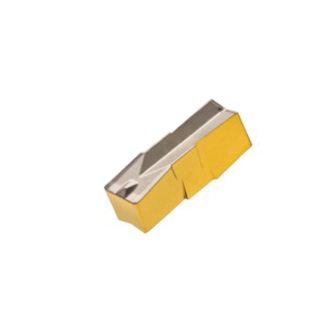

Iscar 6403274 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 31802022 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC905, CVD-TiCN+Al2O3+TiN Coated
Invoice description:
Gip 3.18-0.20-22d Ic9054
Factory Order

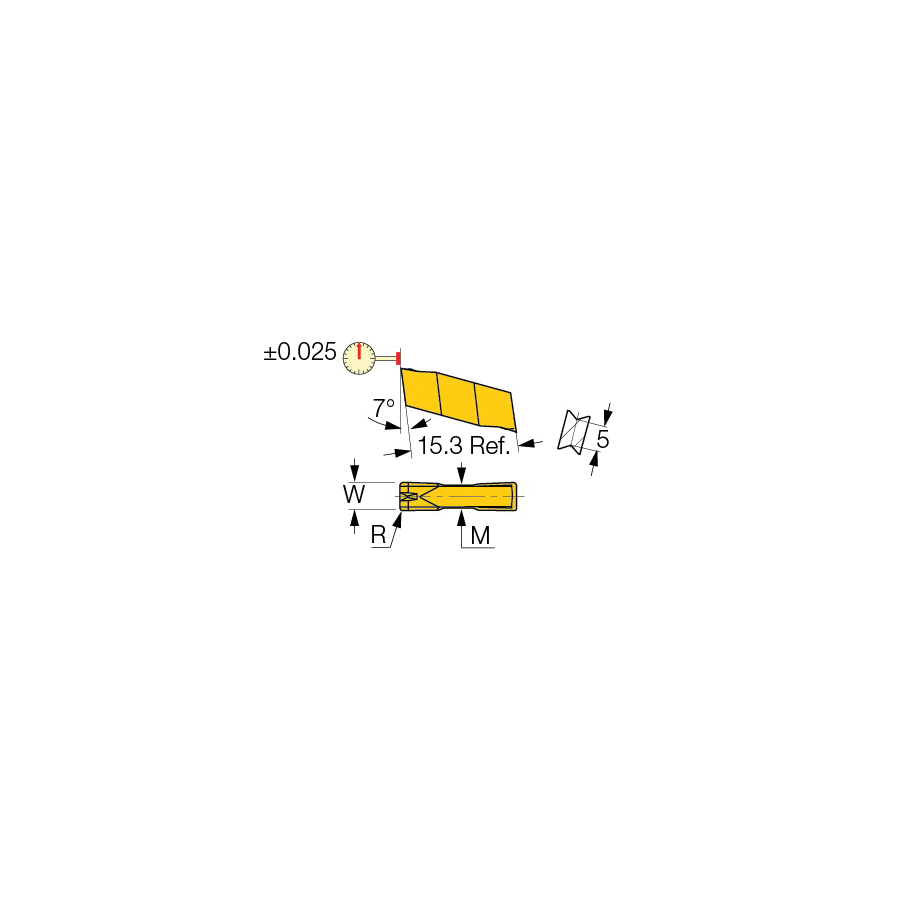

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 31802022 Insert, Rectangle Shape, 3.18 mm Cutting Width, 13 mm Maximum Depth of Cut, D Chipbreaker, 0.2 mm Corner Radius, 3.18 mm Width, 15.3 mm Length, Manufacturers Grade: IC905, ISO Code: GIP 3.18-0.20-22D IC905, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated
Specifications
ApplicationMilling and Slitting
ChipbreakerD
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishCVD-TiCN+Al2O3+TiN Coated
Insert Size31802022
Insert StyleGIP
ISO CodeGIP 3.18-0.20-22D IC905
Length15.3 mm
Manufacturers GradeIC905
MaterialCarbide
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3.18 mm
Additional Information
Country of OriginIS
