Iscar ISCAR 6403201

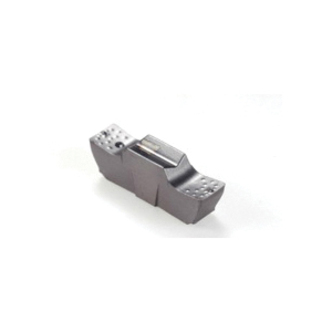

Iscar 6403201 CUT-GRIP Double End Internal Precision Ground Utility Grooving Insert, Rectangle Shape, GEPI Insert, 247020 Insert, Neutral Cutting, 2.47 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403201
$43.42 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End Internal Precision Ground Utility, Series: CUT-GRIP, GEPI Insert, 247020 Insert, Rectangle Shape, 2.47 mm Cutting Width, 1.1 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 2.47 mm Width, 10 mm Length, Manufacturers Grade: IC908, ISO Code: GEPI 2.47-0.20 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Specifications

ApplicationExternal Grooving and Parting
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width2.47 mm
FinishPVD-TiAlN Coated
Insert Size247020
Insert StyleGEPI
ISO CodeGEPI 2.47-0.20 IC908
Length10 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut1.1 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Internal Precision Ground Utility
Width2.47 mm
