Iscar ISCAR 6403197

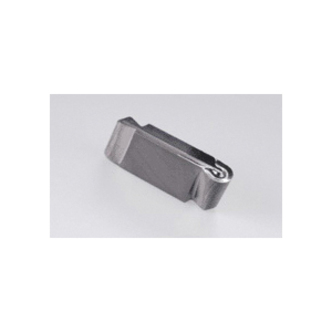

Iscar 6403197 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIPA Insert, 300150 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gipa 3.00-1.50 Ic20
Factory Order

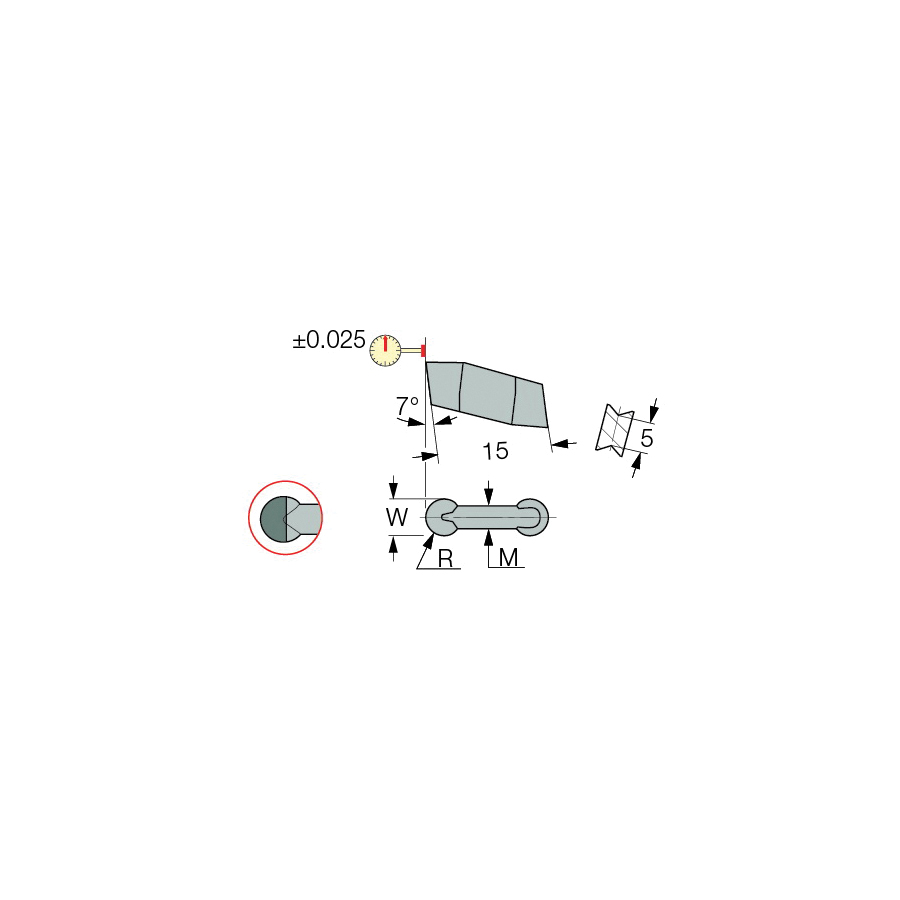

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIPA Insert, 300150 Insert, Rectangle Shape, 3 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 1.5 mm Corner Radius, 3 mm Width, 15 mm Length, Manufacturers Grade: IC20, ISO Code: GIPA 3.00-1.50 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Precision ground double ended inserts polished to avoid built-up edge, used for external machining of aluminum at medium to high feeds
Specifications
ApplicationFor external machining of aluminum wheels at medium to high speeds
Corner Radius1.5 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishUncoated
Insert Size300150
Insert StyleGIPA
ISO CodeGIPA 3.00-1.50 IC20
Length15 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut1.5 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3 mm
Additional Information
Country of OriginIS
