Iscar ISCAR 6403183

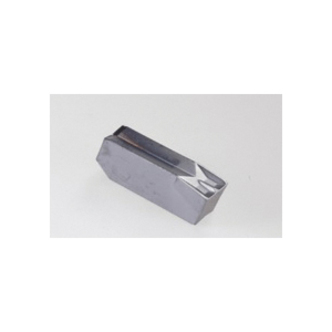

Iscar 6403183 CUT-GRIP Single End Grooving Insert, Rectangle Shape, GIM Insert, 4 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6403183
$21.22 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Single End, Series: CUT-GRIP, GIM Insert, 4 Insert, Rectangle Shape, 4 mm Cutting Width, W Chipbreaker, 0.25 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC908, ISO Code: GIM 4 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

  • First choice for soft materials, parting of tubes, small diameters and thin walled parts
  • General applications on low carbon, alloy and austenitic stainless steel
  • Low to medium feeds

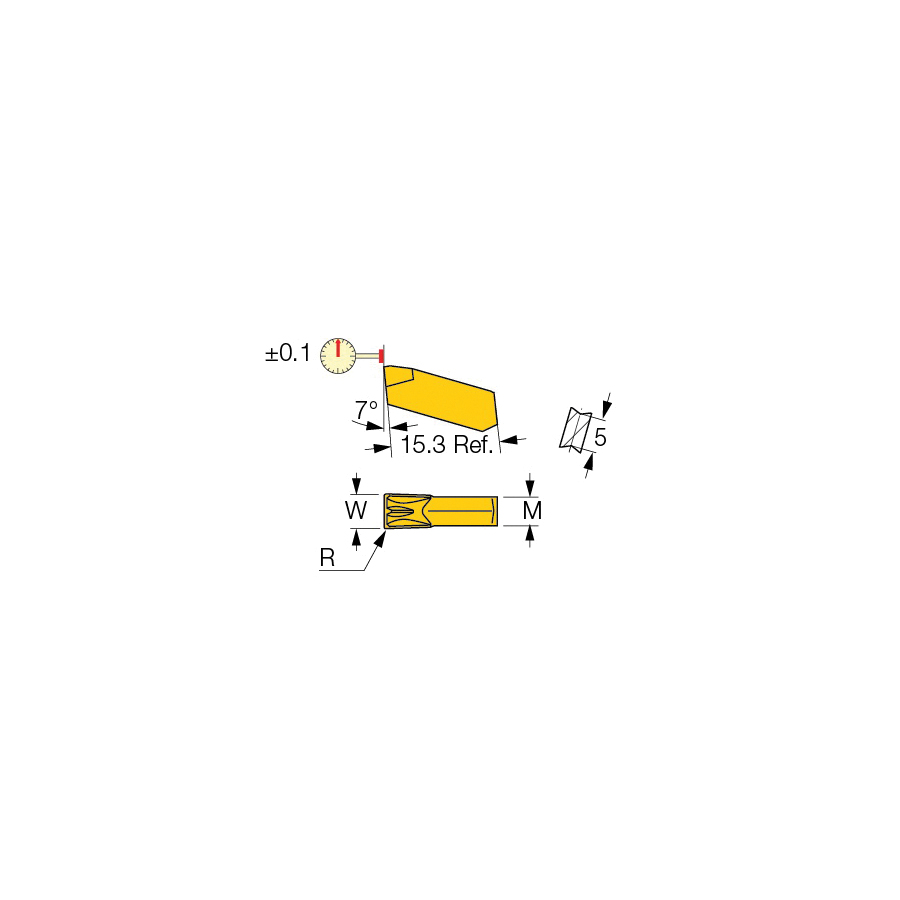

Specifications

ApplicationExternal Grooving, Groove Turning, Internal Grooving, Milling, Parting, Side Slotting, Slitting and T-Slotting
ChipbreakerW
Corner Radius0.25 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiAlN Coated
Insert Size4
Insert StyleGIM
ISO CodeGIM 4 IC908
Length15.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End
Width4 mm
