Iscar ISCAR 6403132

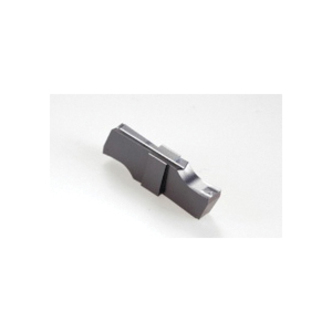

Iscar 6403132 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIPI Insert, 239015 Insert, Neutral Cutting, 2.39 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gipi 2.39-0.15 Ic908
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIPI Insert, 239015 Insert, Rectangle Shape, 2.39 mm Cutting Width, 6.4 mm Maximum Depth of Cut, P Chipbreaker, 0.15 mm Corner Radius, 2.4 mm Width, 15.7 mm Length, Manufacturers Grade: IC908, ISO Code: GIPI 2.39-0.15 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- Precision inner inserts with double edge for internal channel
Specifications
ApplicationExternal Grooving and Parting
ChipbreakerP
Corner Radius0.15 mm
Cutting DirectionNeutral
Cutting Width2.39 mm
FinishPVD-TiAlN Coated
Insert Size239015
Insert StyleGIPI
ISO CodeGIPI 2.39-0.15 IC908
Length15.7 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut6.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width2.4 mm
Additional Information
Country of OriginIL
