Iscar ISCAR 6402812

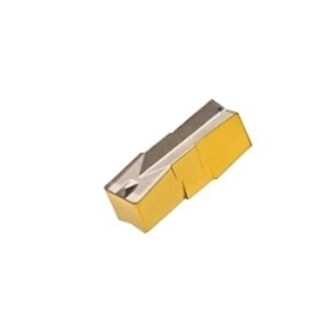

Iscar 6402812 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 318020 Insert, Neutral Cutting, 3.18 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Invoice description:
Gip 3.18-0.20 Ic908
Factory Order
Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 318020 Insert, Rectangle Shape, 3.18 mm Cutting Width, 13 mm Maximum Depth of Cut, P Chipbreaker, 0.2 mm Corner Radius, 3.18 mm Width, 15.3 mm Length, Manufacturers Grade: IC908, ISO Code: GIP 3.18-0.20 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S
Features
- Precision ground inserts for grooving and recessing
Specifications
ApplicationExternal Grooving Applications
ChipbreakerP
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3.18 mm
FinishPVD-TiAlN Coated
Insert Size318020
Insert StyleGIP
ISO CodeGIP 3.18-0.20 IC908
Length15.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut13 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width3.18 mm
Additional Information
Country of OriginIS
