Iscar ISCAR 6402811

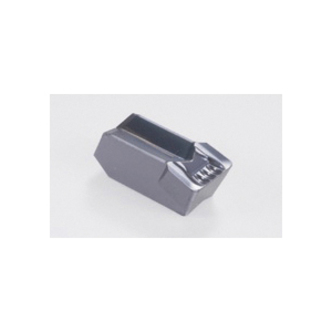

Iscar 6402811 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMY Insert, 808 Insert, Neutral Cutting, 8 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Invoice description: Gimy 808 Ic908

UNSPSC: 23242107

Manufacturer PN: 6402811

^$29.40 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

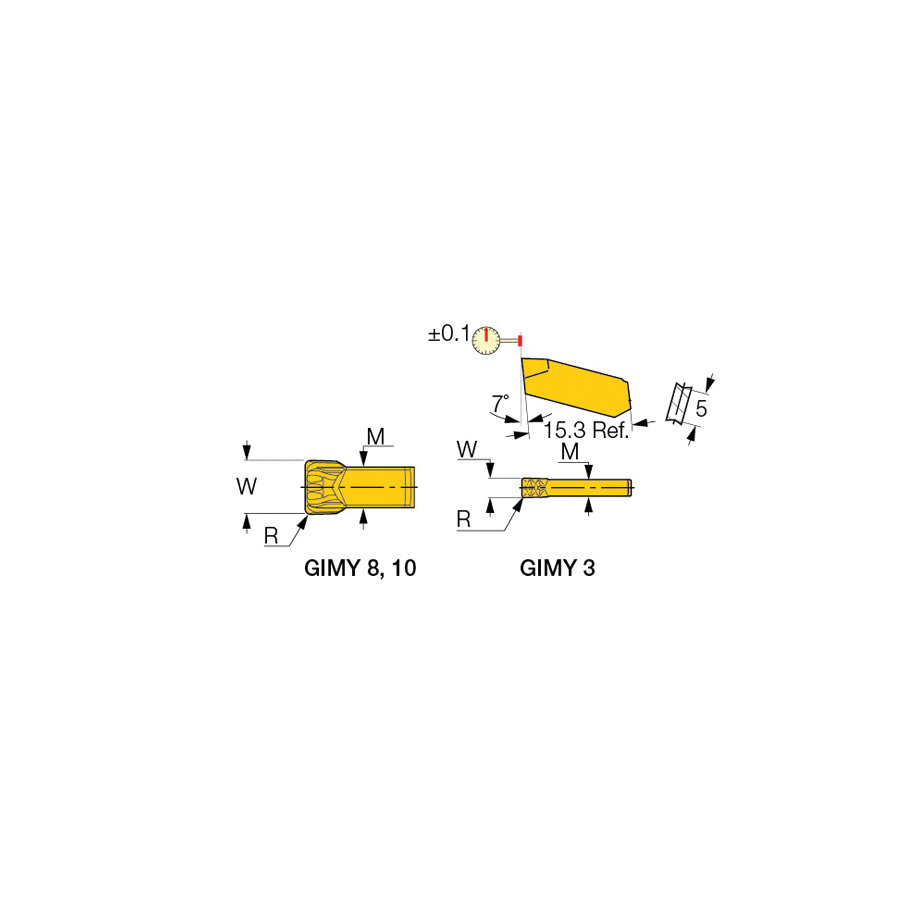

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMY Insert, 808 Insert, Rectangle Shape, 8 mm Cutting Width, 4.8 mm Maximum Depth of Cut, 7 deg Lead Angle, Y Chipbreaker, 0.8 mm Corner Radius, 8 mm Width, 15.3 mm Length, Manufacturers Grade: IC908, ISO Code: GIMY 808 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

Features
Used for deep grooving and turning at low to medium feeds

Specifications

ApplicationExternal Grooving, External Grooving and Turning, Face Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Grooving, Internal Grooving and Turning and T-Slotting

ChipbreakerY

Corner Radius0.8 mm

Cutting DirectionNeutral

Cutting Width8 mm

FinishPVD-TiAlN Coated

Insert Size808

Insert StyleGIMY

ISO CodeGIMY 808 IC908

Lead Angle7 deg

Length15.3 mm

Manufacturers GradeIC908

MaterialCarbide
