Iscar ISCAR 6402793

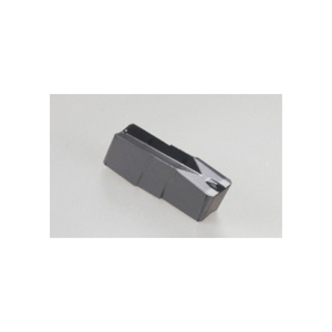

Iscar 6402793 CUT-GRIP Double End Grooving Insert, GIP Insert, 400080 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC908, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

UNSPSC: 23242107
Manufacturer PN: 6402793
$46.42 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 400080 Insert, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, E Chipbreaker, 0.8 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC908, ISO Code: GIP 4.00E-0.80 IC908, Neutral Cutting Direction, Carbide, PVD-TiAlN Coated, Material Grade: H, K, M, P, S

  • Features

  • Precision, double ended inserts for turning and grooving
  • Medium to high feeds

Specifications

ApplicationFor cast iron machining applications
ChipbreakerE
Corner Radius0.8 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiAlN Coated
Insert Size400080
Insert StyleGIP
ISO CodeGIP 4.00E-0.80 IC908
Length15.3 mm
Manufacturers GradeIC908
MaterialCarbide
Material GradeH, K, M, P, S
Maximum Depth of Cut2.4 mm
SeriesCUT-GRIP
TypeDouble End
Width4 mm
