Iscar ISCAR 6402728

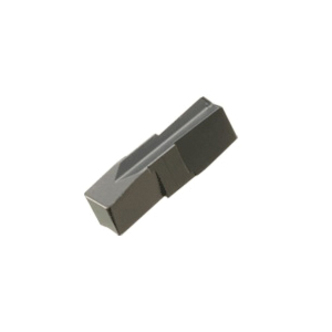

Iscar 6402728 CUT-GRIP Double End Grooving Insert, GIA Insert, 300040 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Gia 3.00k-0.40 Ic428
Factory Order

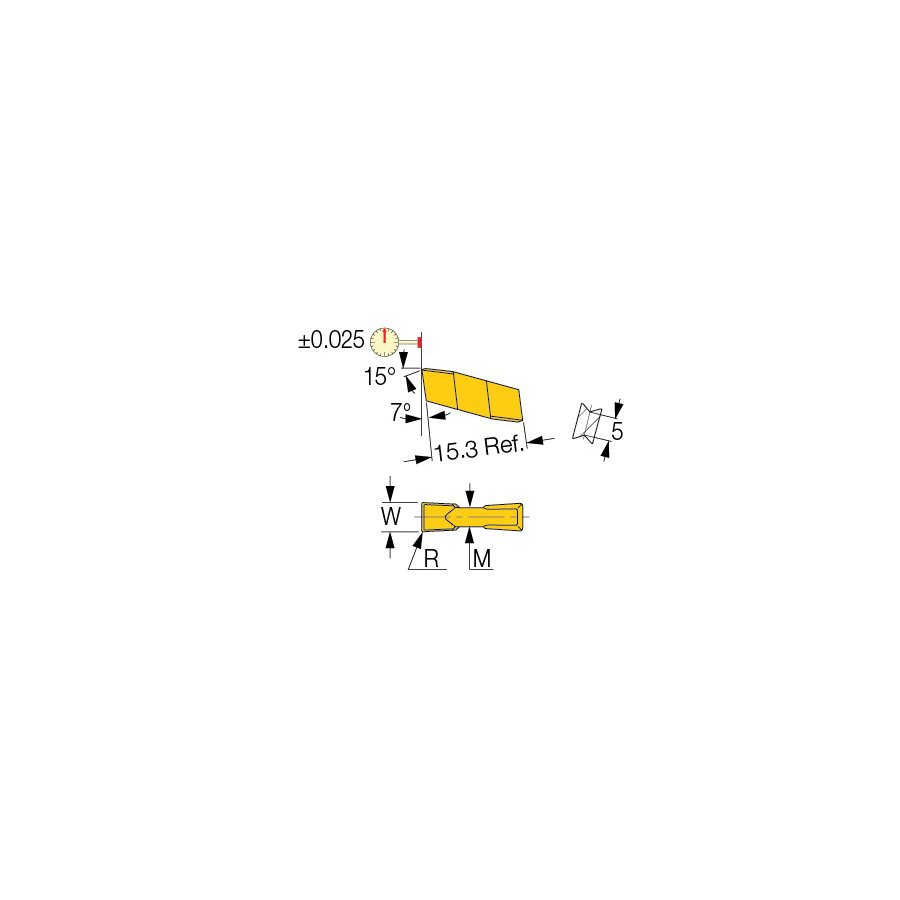

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIA Insert, 300040 Insert, 3 mm Cutting Width, 1.8 mm Maximum Depth of Cut, K Chipbreaker, 0.4 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC428, ISO Code: GIA 3.00K-0.40 IC428, Neutral Cutting, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Features
- Precision inserts for machining cast iron
- Medium to high feeds
Specifications
ApplicationFor cast iron machining applications
ChipbreakerK
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size300040
Insert StyleGIA
ISO CodeGIA 3.00K-0.40 IC428
Length15.3 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut1.8 mm
SeriesCUT-GRIP
TypeDouble End
Width3 mm
Additional Information
Country of OriginIL
