Iscar ISCAR 6402702

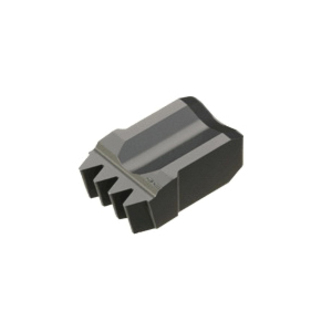

Iscar 6402702 CUT-GRIP Internal Precision Ground Grooving Insert, Rectangle Shape, GPV Insert, 173564 Insert, Neutral Cutting, 14.68 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Gpv 17-3.56-4 Ic428
Factory Order

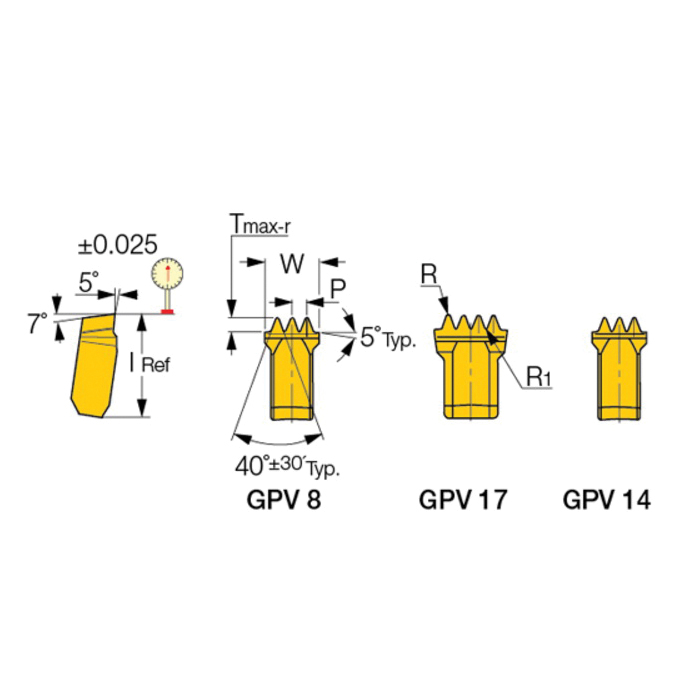

Iscar Grooving Insert, Internal Precision Ground, Series: CUT-GRIP, GPV Insert, 173564 Insert, Rectangle Shape, 14.68 mm Cutting Width, 3.42 mm Maximum Depth of Cut, 0.45 mm Corner Radius, 14.68 mm Width, 24 mm Length, Manufacturers Grade: IC428, ISO Code: GPV 17-3.56-4 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Features
- For grooving multi- V-ribbed pulleys
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.45 mm
Cutting DirectionNeutral
Cutting Width14.68 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size173564
Insert StyleGPV
ISO CodeGPV 17-3.56-4 IC428
Length24 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut3.42 mm
SeriesCUT-GRIP
ShapeRectangle
TypeInternal Precision Ground
Width14.68 mm
Additional Information
Country of OriginIL
