Iscar ISCAR 6402699

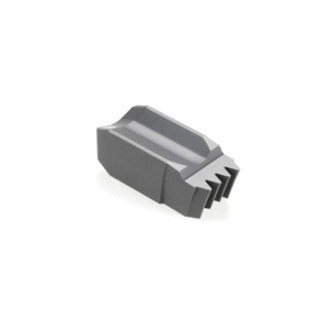

Iscar 6402699 CUT-GRIP Internal Precision Ground Grooving Insert, Rectangle Shape, GPV Insert, 142344 Insert, Neutral Cutting, 9.82 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Gpv 14-2.34-4 Ic428
Factory Order
Iscar Grooving Insert, Internal Precision Ground, Series: CUT-GRIP, GPV Insert, 142344 Insert, Rectangle Shape, 9.82 mm Cutting Width, 2.21 mm Maximum Depth of Cut, 0.32 mm Corner Radius, 9.82 mm Width, 24 mm Length, Manufacturers Grade: IC428, ISO Code: GPV 14-2.34-4 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Features
- For grooving multi- V-ribbed pulleys
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.32 mm
Cutting DirectionNeutral
Cutting Width9.82 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size142344
Insert StyleGPV
ISO CodeGPV 14-2.34-4 IC428
Length24 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut2.21 mm
SeriesCUT-GRIP
ShapeRectangle
TypeInternal Precision Ground
Width9.82 mm
