Iscar ISCAR 6402669

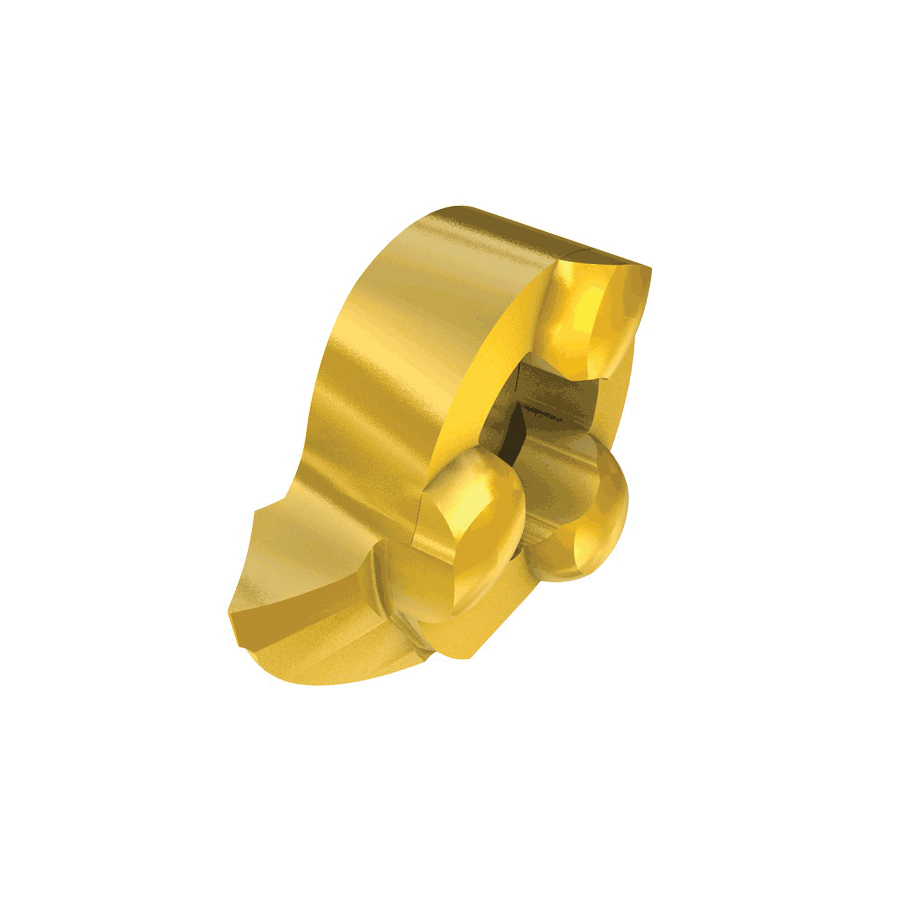

Iscar 6402669 CHAMGROOVE Internal Precision Ground Single End Grooving Insert, GIQL Insert, 11MT005 Insert, Neutral Cutting, Manufacturers Grade: IC528, PVD- TiCN+TiN Coated, Material Grade: M, P, S

Invoice description: Giql 11-mt-0.05 Ic528

UNSPSC: 23242107
Manufacturer PN: 6402669
$41.40 EA
Factory Order
Estimated to ship in 14 days
QTY:

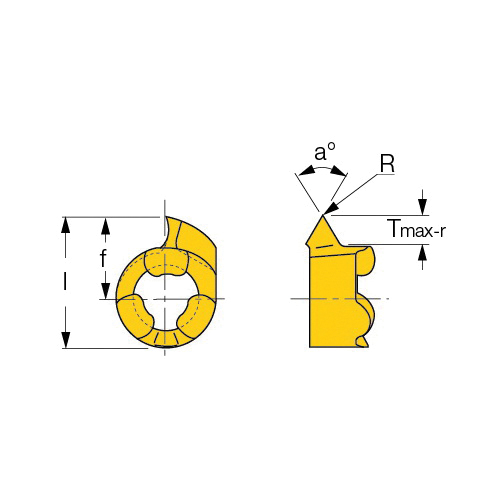

Iscar Grooving Insert, Internal Precision Ground Single End, Series: CHAMGROOVE, GIQL Insert, 11MT005 Insert, 2 mm Maximum Depth of Cut, 0.05 mm Corner Radius, 10.68 mm Length, Manufacturers Grade: IC528, ISO Code: GIQL 11-MT-0.05 IC528, Neutral Cutting, Carbide, PVD- TiCN+TiN Coated, Material Grade: M, P, S

Specifications

ApplicationExternal/Internal Grooving, Turning and Parting
Corner Radius0.05 mm
Cutting DirectionNeutral
FinishPVD- TiCN+TiN Coated
Insert Size11MT005
Insert StyleGIQL
ISO CodeGIQL 11-MT-0.05 IC528
Length10.68 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2 mm
SeriesCHAMGROOVE
TypeInternal Precision Ground Single End

Additional Information

Country of OriginIL
