Iscar ISCAR 6402629

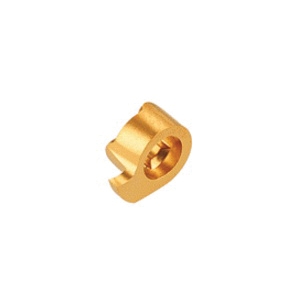

Iscar 6402629 CHAMGROOVE Internal Precision Ground Single End Grooving Insert, Special Shape, GIQR Insert, 11095000 Insert, Right Hand Cutting, 0.95 mm W Cutting, Manufacturers Grade: IC528, PVD- TiCN+TiN Coated, Material Grade: M, P, S

Invoice description: Giqr 11-0.95-0.00 Ic528

UNSPSC: 23242107
Manufacturer PN: 6402629
$35.90 EA
Factory Order
Estimated to ship in 14 days
QTY:


Iscar Grooving Insert, Internal Precision Ground Single End, Series: CHAMGROOVE, GIQR Insert, 11095000 Insert, Special Shape, 0.95 mm Cutting Width, 1.8 mm Maximum Depth of Cut, 0.2 mm Corner Radius, 0.95 mm Width, 10.68 mm Length, Manufacturers Grade: IC528, ISO Code: GIQR 11-0.95-0.00 IC528, Right Hand Cutting Direction, Carbide, PVD- TiCN+TiN Coated, Material Grade: M, P, S

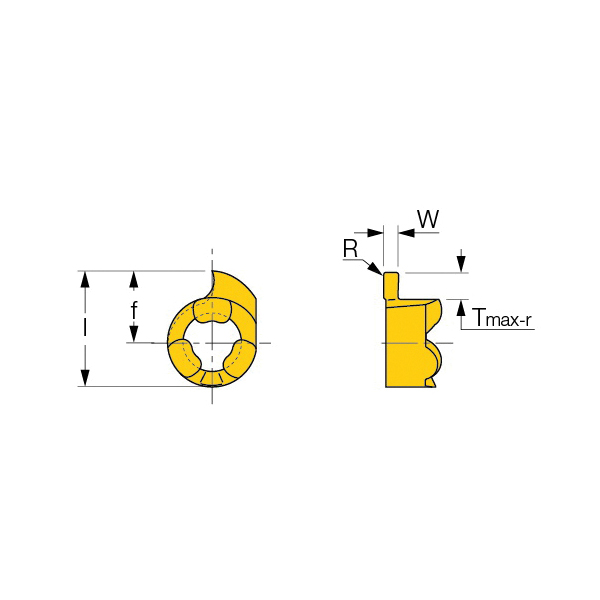

Specifications

ApplicationExternal/Internal Grooving, Turning and Parting
Corner Radius0.2 mm
Cutting DirectionRight Hand
Cutting Width0.95 mm
FinishPVD- TiCN+TiN Coated
Insert Size11095000
Insert StyleGIQR
ISO CodeGIQR 11-0.95-0.00 IC528
Length10.68 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1.8 mm
SeriesCHAMGROOVE
ShapeSpecial
TypeInternal Precision Ground Single End
Width0.95 mm

Additional Information

Country of OriginIL
