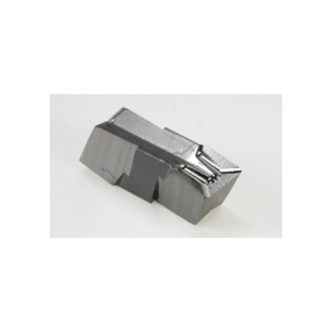

Iscar ISCAR 6402601
Iscar 6402601 CUT-GRIP Double End External Precision Ground Grooving Insert, Rectangle Shape, GIPA Insert, 600040 Insert, Neutral Cutting, 6 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Factory Order
Iscar Grooving Insert, Double End External Precision Ground, Series: CUT-GRIP, GIPA Insert, 600040 Insert, Rectangle Shape, 6 mm Cutting Width, 3.6 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 6 mm Width, 15 mm Length, Manufacturers Grade: IC20, ISO Code: GIPA 6.00-0.40 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Polished to avoid built-up edge
- Used for machining aluminum at medium to high feeds
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width6 mm
FinishUncoated
Insert Size600040
Insert StyleGIPA
ISO CodeGIPA 6.00-0.40 IC20
Length15 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut3.6 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End External Precision Ground
Width6 mm
