Iscar ISCAR 6402476

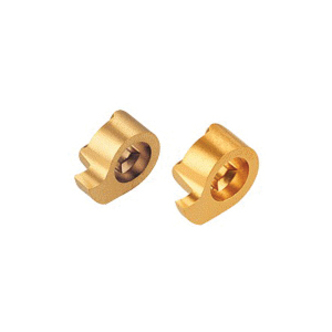

Iscar 6402476 CHAMGROOVE Single End Grooving Insert, GIQR Insert, 8104005 Insert, Right Hand Cutting, 1.04 mm W Cutting, Manufacturers Grade: IC528, PVD- TiCN+TiN Coated, Material Grade: M, P, S

UNSPSC: 23242107
Manufacturer PN: 6402476
$35.44 EA
Factory Order
Estimated to ship in 14 days
QTY:

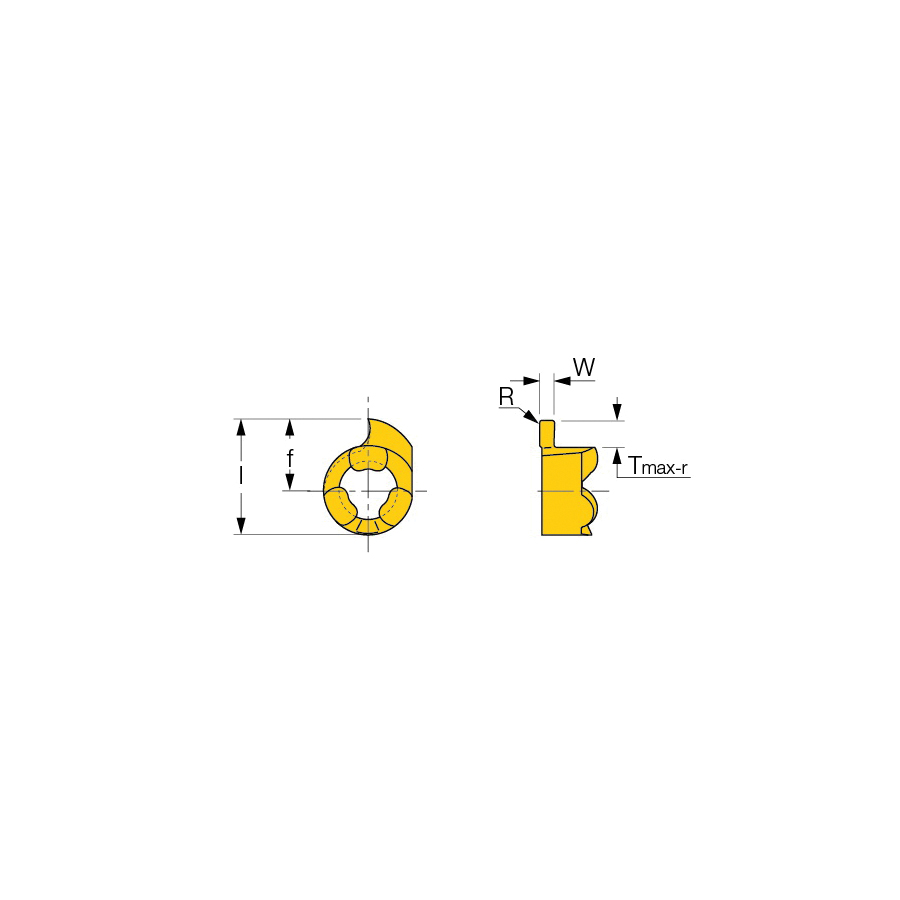

Iscar Grooving Insert, Single End, Series: CHAMGROOVE, GIQR Insert, 8104005 Insert, 1.04 mm Cutting Width, 1.5 mm Maximum Depth of Cut, 0.05 mm Corner Radius, 1.04 mm Width, 7.78 mm Length, Manufacturers Grade: IC528, ISO Code: GIQR 8-1.04-0.05 IC528, Right Hand Cutting Direction, Carbide, PVD- TiCN+TiN Coated, Material Grade: M, P, S

Specifications

ApplicationGroove Turning, Internal Boring and Profiling, Internal Grooving and Internal Grooving and Turning
Corner Radius0.05 mm
Cutting DirectionRight Hand
Cutting Width1.04 mm
FinishPVD- TiCN+TiN Coated
Insert Size8104005
Insert StyleGIQR
ISO CodeGIQR 8-1.04-0.05 IC528
Length7.78 mm
Manufacturers GradeIC528
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut1.5 mm
SeriesCHAMGROOVE
TypeSingle End
Width1.04 mm
