Iscar ISCAR 6402290

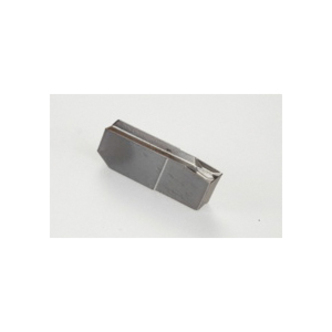

Iscar 6402290 CUT-GRIP Single End Grooving Insert, Rectangle Shape, GIM Insert, 24 Insert, Neutral Cutting, 2.4 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Invoice description:
Gim 2.4 Ic354
Factory Order

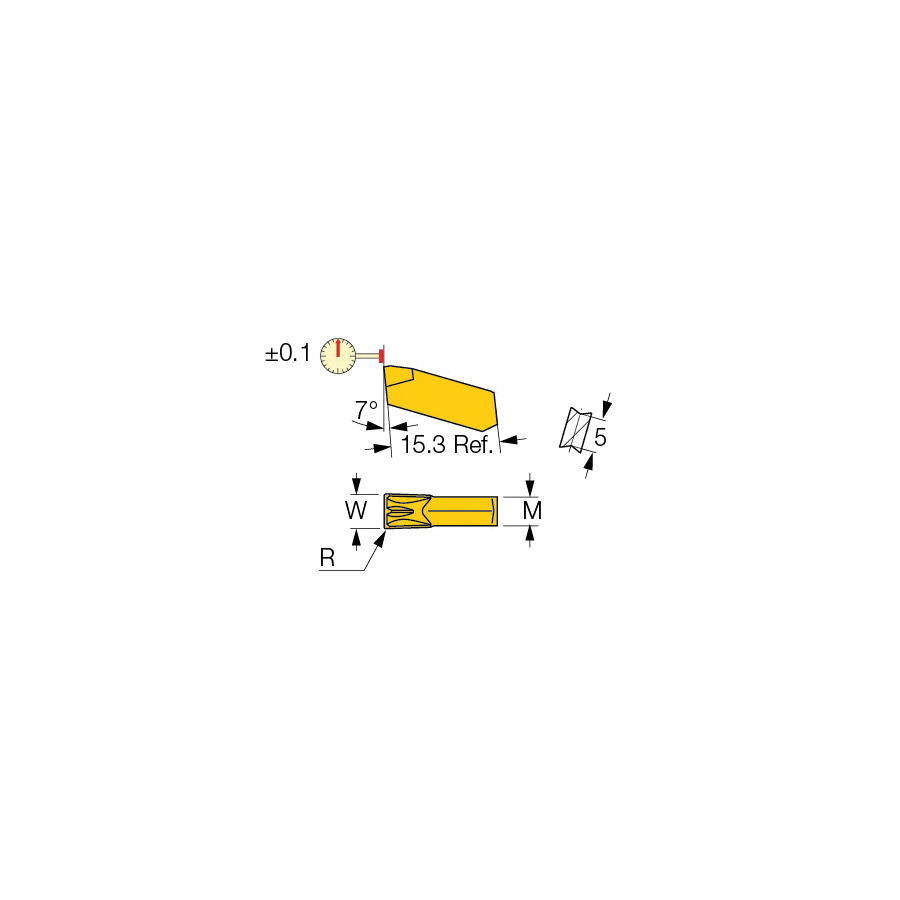

Iscar Grooving Insert, Single End, Series: CUT-GRIP, GIM Insert, 24 Insert, Rectangle Shape, 2.4 mm Cutting Width, W Chipbreaker, 0.18 mm Corner Radius, 2.4 mm Width, 15.3 mm Length, Manufacturers Grade: IC354, ISO Code: GIM 2.4 IC354, Neutral Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Features
- With a central ridge that forms double cavities on the rake face
- Most efficient on alloy steel
Specifications
ApplicationExternal Grooving, Groove Turning, Internal Grooving, Parting, Side Slotting, Slitting and T-Slotting
ChipbreakerW
Corner Radius0.18 mm
Cutting DirectionNeutral
Cutting Width2.4 mm
FinishPVD-TiCN Coated
Insert Size24
Insert StyleGIM
ISO CodeGIM 2.4 IC354
Length15.3 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End
Width2.4 mm
Additional Information
Country of OriginIS
