Iscar ISCAR 6402136

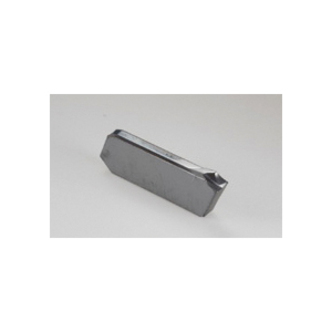

Iscar 6402136 CUT-GRIP Single End Grooving Insert, Rectangle Shape, GIM Insert, 22 Insert, Neutral Cutting, 2.2 mm W Cutting, Manufacturers Grade: IC354, PVD-TiCN Coated, Material Grade: M, P
Invoice description:
Gim 2.2j Ic354
Factory Order

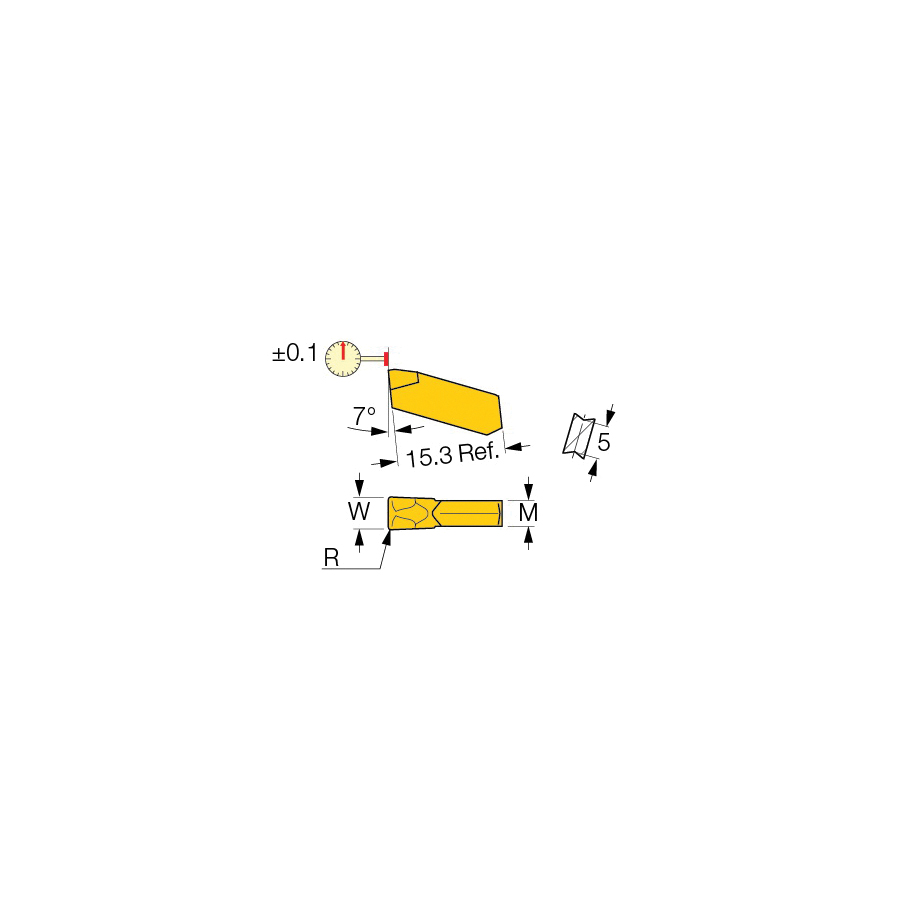

Iscar Grooving Insert, Single End, Series: CUT-GRIP, GIM Insert, 22 Insert, Rectangle Shape, 2.2 mm Cutting Width, J Chipbreaker, 0.17 mm Corner Radius, 2.2 mm Width, 15.3 mm Length, Manufacturers Grade: IC354, ISO Code: GIM 2.2J IC354, Neutral Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P
Features
- First choice for soft materials, parting of tubes, small diameters and thin walled parts
- General applications on low carbon, alloy and austenitic stainless steel
- Low to medium feeds
Specifications
ApplicationExternal Grooving, Groove Turning, Internal Grooving, Parting, Side Slotting, Slitting and T-Slotting
ChipbreakerJ
Corner Radius0.17 mm
Cutting DirectionNeutral
Cutting Width2.2 mm
FinishPVD-TiCN Coated
Insert Size22
Insert StyleGIM
ISO CodeGIM 2.2J IC354
Length15.3 mm
Manufacturers GradeIC354
MaterialCarbide
Material GradeM, P
SeriesCUT-GRIP
ShapeRectangle
TypeSingle End
Width2.2 mm
Additional Information
Country of OriginIS
