Iscar ISCAR 6402113

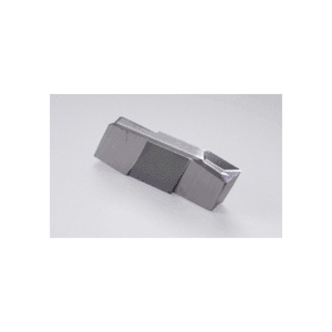

Iscar 6402113 CUT-GRIP Double End External Precision Ground Grooving Insert, Rectangle Shape, GIPA Insert, 300020 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gipa 3.00-0.20 Ic20
Factory Order

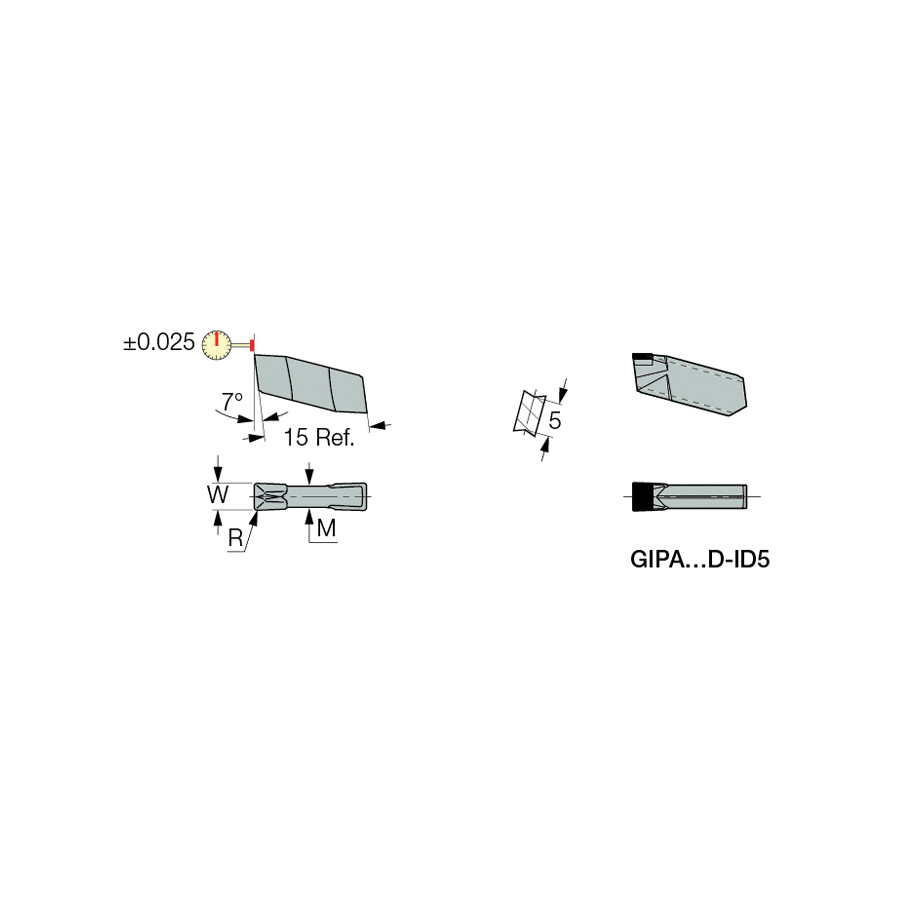

Iscar Grooving Insert, Double End External Precision Ground, Series: CUT-GRIP, GIPA Insert, 300020 Insert, Rectangle Shape, 3 mm Cutting Width, 1.8 mm Maximum Depth of Cut, 7 deg Lead Angle, 0.2 mm Corner Radius, 3 mm Width, 15 mm Length, Manufacturers Grade: IC20, ISO Code: GIPA 3.00-0.20 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Polished to avoid built-up edge
- Used for machining aluminum at medium to high feeds
Specifications
ApplicationExternal Grooving and Parting
Corner Radius0.2 mm
Cutting DirectionNeutral
Cutting Width3 mm
FinishUncoated
Insert Size300020
Insert StyleGIPA
ISO CodeGIPA 3.00-0.20 IC20
Lead Angle7 deg
Length15 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut1.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End External Precision Ground
Width3 mm
Additional Information
Country of OriginCH
