Iscar ISCAR 6402110

Iscar 6402110 CUT-GRIP Single End Utility Grooving Insert, Rectangle Shape, GIMY Insert, 304 Insert, Neutral Cutting, 3 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S

Invoice description: Gimy 304 Ic20

UNSPSC: 23242107

Manufacturer PN: 6402110

^$16.06 EA

Factory Order
Estimated to ship in 14 days

enlarge

Product Overview

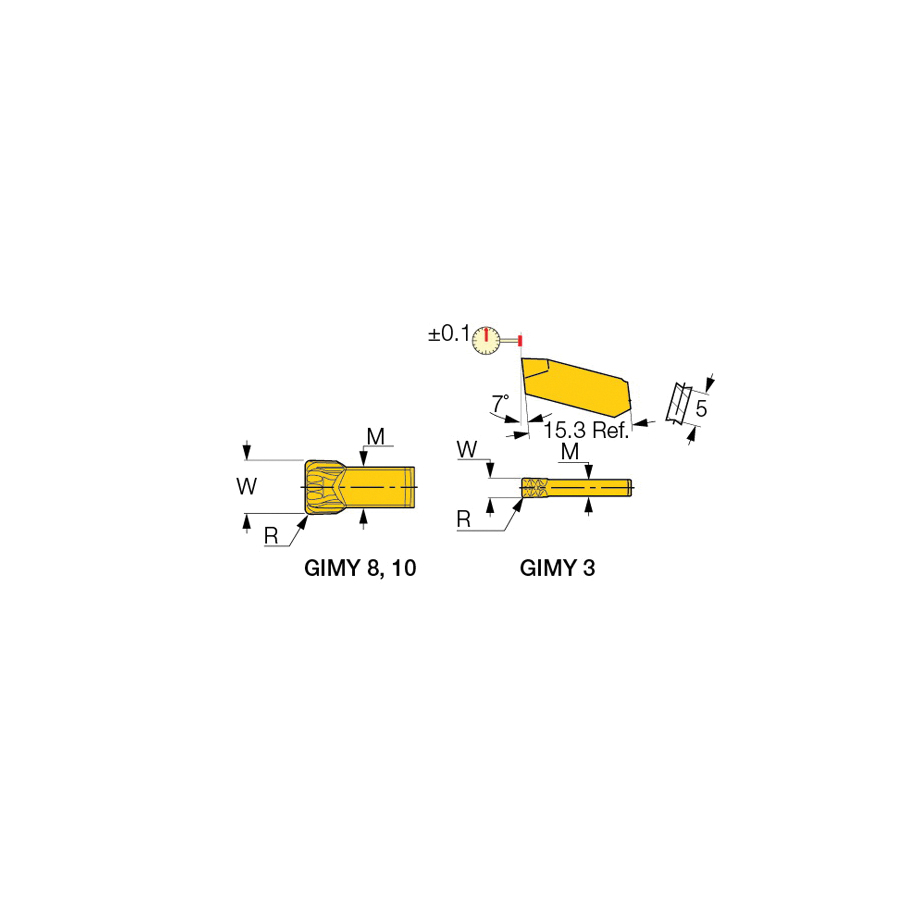

Iscar Grooving Insert, Single End Utility, Series: CUT-GRIP, GIMY Insert, 304 Insert, Rectangle Shape, 3 mm Cutting Width, 1.8 mm Maximum Depth of Cut, Y Chipbreaker, 0.4 mm Corner Radius, 3 mm Width, 15.3 mm Length, Manufacturers Grade: IC20, ISO Code: GIMY 304 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S

Features
Used for deep grooving and turning at low to medium feeds

Specifications

ApplicationExternal Grooving, External Grooving and Turning, Face Grooving, Face Grooving and Turning, Face Grooving Along Shaft, Groove Turning, Internal Grooving and Internal Grooving and Turning

ChipbreakerY

Corner Radius0.4 mm

Cutting DirectionNeutral

Cutting Width3 mm

FinishUncoated

Insert Size304

Insert StyleGIMY

ISO CodeGIMY 304 IC20

Length15.3 mm

Manufacturers GradeIC20

MaterialCarbide

Material GradeH, K, M, N, S
