Iscar ISCAR 6402108

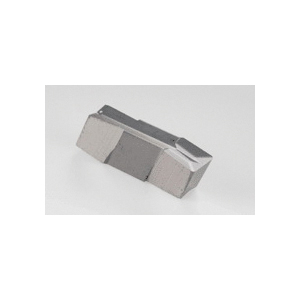

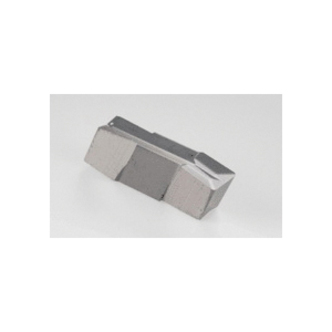

Iscar 6402108 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIPA Insert, 400040 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC20, Uncoated, Material Grade: H, K, M, N, S
Invoice description:
Gipa 4.00-0.40 Ic20
Factory Order

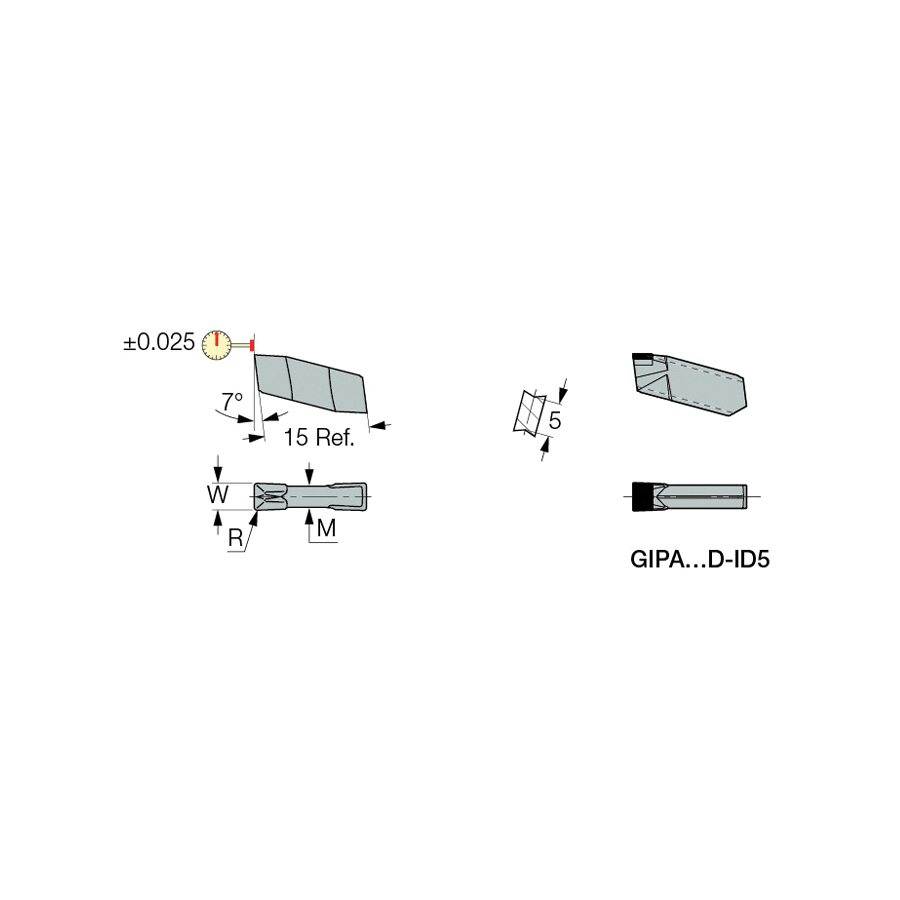

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIPA Insert, 400040 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, 0.4 mm Corner Radius, 4 mm Width, 15 mm Length, Manufacturers Grade: IC20, ISO Code: GIPA 4.00-0.40 IC20, Neutral Cutting Direction, Carbide, Uncoated, Material Grade: H, K, M, N, S
Features
- Precision ground double ended inserts polished to avoid built-up edge, used for machining aluminum at medium to high feeds
Specifications
ApplicationExternal Turning and Grooving
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishUncoated
Insert Size400040
Insert StyleGIPA
ISO CodeGIPA 4.00-0.40 IC20
Length15 mm
Manufacturers GradeIC20
MaterialCarbide
Material GradeH, K, M, N, S
Maximum Depth of Cut2.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width4 mm
Additional Information
Country of OriginIS
