Iscar ISCAR 6402089

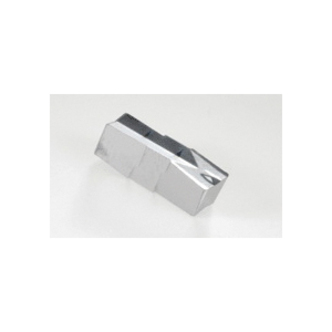

Iscar 6402089 CUT-GRIP Double End Precision Ground Grooving Insert, Rectangle Shape, GIP Insert, 400040 Insert, Neutral Cutting, 4 mm W Cutting, Manufacturers Grade: IC328, PVD-TiCN Coated, Material Grade: M, P, S
Invoice description:
Gip 4.00e-0.40 Ic328
Factory Order
Iscar Grooving Insert, Double End Precision Ground, Series: CUT-GRIP, GIP Insert, 400040 Insert, Rectangle Shape, 4 mm Cutting Width, 2.4 mm Maximum Depth of Cut, E Chipbreaker, 0.4 mm Corner Radius, 4 mm Width, 15.3 mm Length, Manufacturers Grade: IC328, ISO Code: GIP 4.00E-0.40 IC328, Neutral Cutting Direction, Carbide, PVD-TiCN Coated, Material Grade: M, P, S
Specifications
ApplicationExternal Grooving, Parting and Turning
ChipbreakerE
Corner Radius0.4 mm
Cutting DirectionNeutral
Cutting Width4 mm
FinishPVD-TiCN Coated
Insert Size400040
Insert StyleGIP
ISO CodeGIP 4.00E-0.40 IC328
Length15.3 mm
Manufacturers GradeIC328
MaterialCarbide
Material GradeM, P, S
Maximum Depth of Cut2.4 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End Precision Ground
Width4 mm
Additional Information
Country of OriginIL
