Iscar ISCAR 6402002

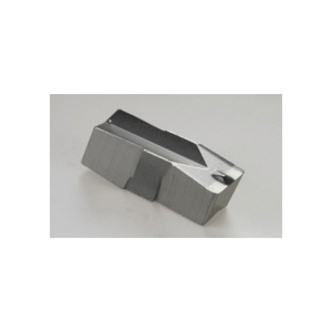

Iscar 6402002 CUT-GRIP Double End Grooving Insert, Rectangle Shape, GIP Insert, 478055 Insert, Neutral Cutting, 4.78 mm W Cutting, Manufacturers Grade: IC428, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Invoice description:
Gip 4.78e-0.55 Ic428
Factory Order

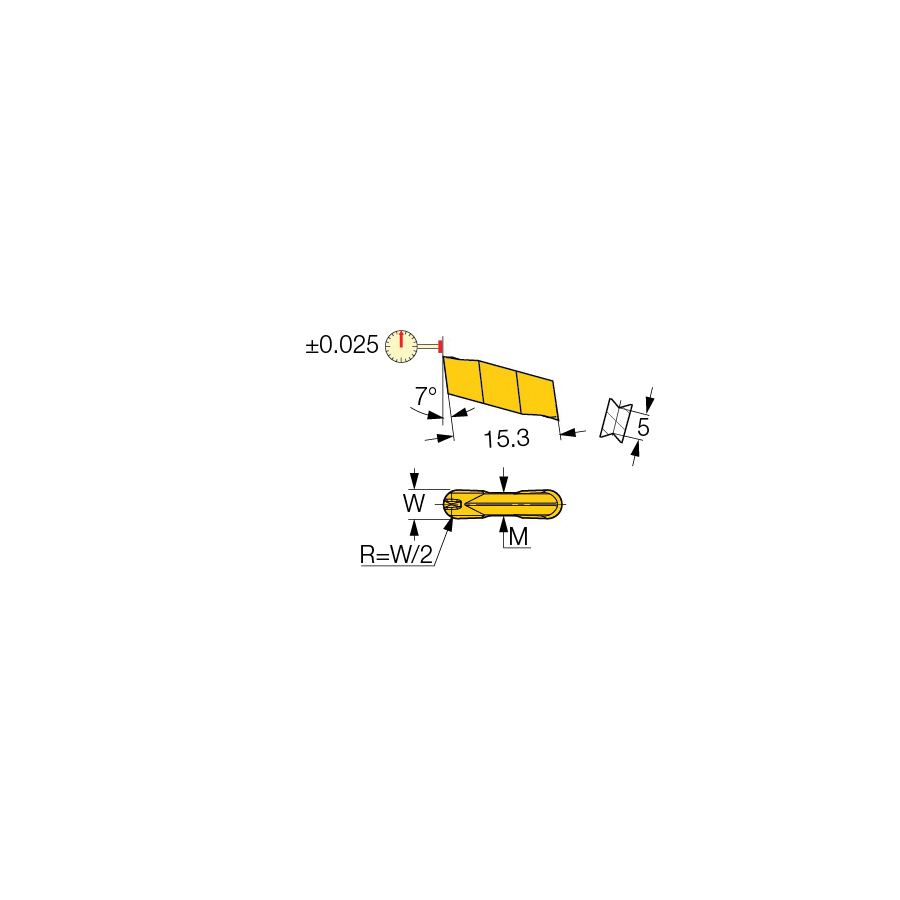

Iscar Grooving Insert, Double End, Series: CUT-GRIP, GIP Insert, 478055 Insert, Rectangle Shape, 4.78 mm Cutting Width, 2.8 mm Maximum Depth of Cut, E Chipbreaker, 0.55 mm Corner Radius, 4.78 mm Width, 15.3 mm Length, Manufacturers Grade: IC428, ISO Code: GIP 4.78E-0.55 IC428, Neutral Cutting Direction, Carbide, CVD-TiC+Al2O3 Coated, Material Grade: H, K, P
Features
- Precision double ended inserts
Specifications
ApplicationExternal Turning and Grooving
ChipbreakerE
Corner Radius0.55 mm
Cutting DirectionNeutral
Cutting Width4.78 mm
FinishCVD-TiC+Al2O3 Coated
Insert Size478055
Insert StyleGIP
ISO CodeGIP 4.78E-0.55 IC428
Length15.3 mm
Manufacturers GradeIC428
MaterialCarbide
Material GradeH, K, P
Maximum Depth of Cut2.8 mm
SeriesCUT-GRIP
ShapeRectangle
TypeDouble End
Width4.78 mm
Additional Information
Country of OriginIL
